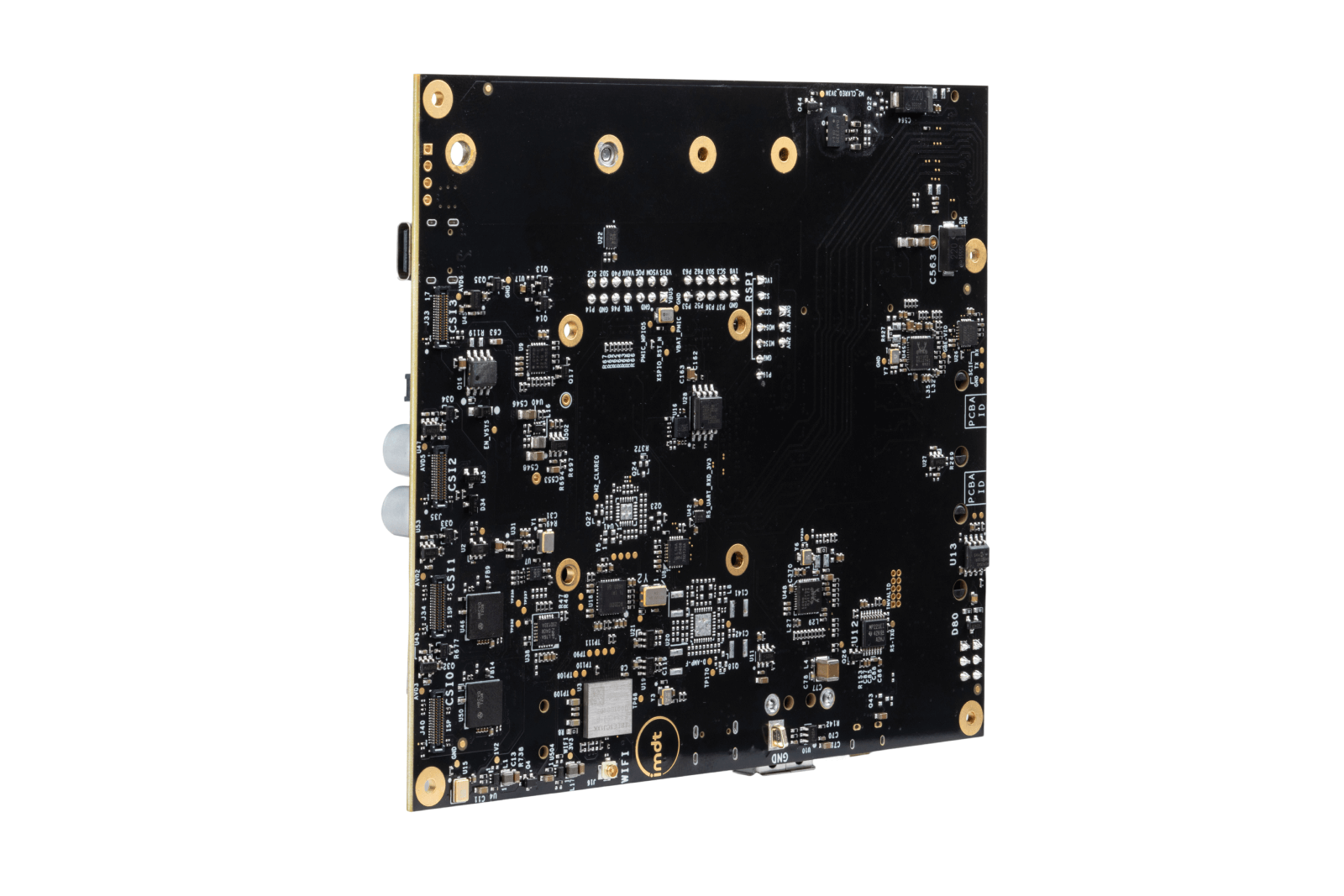

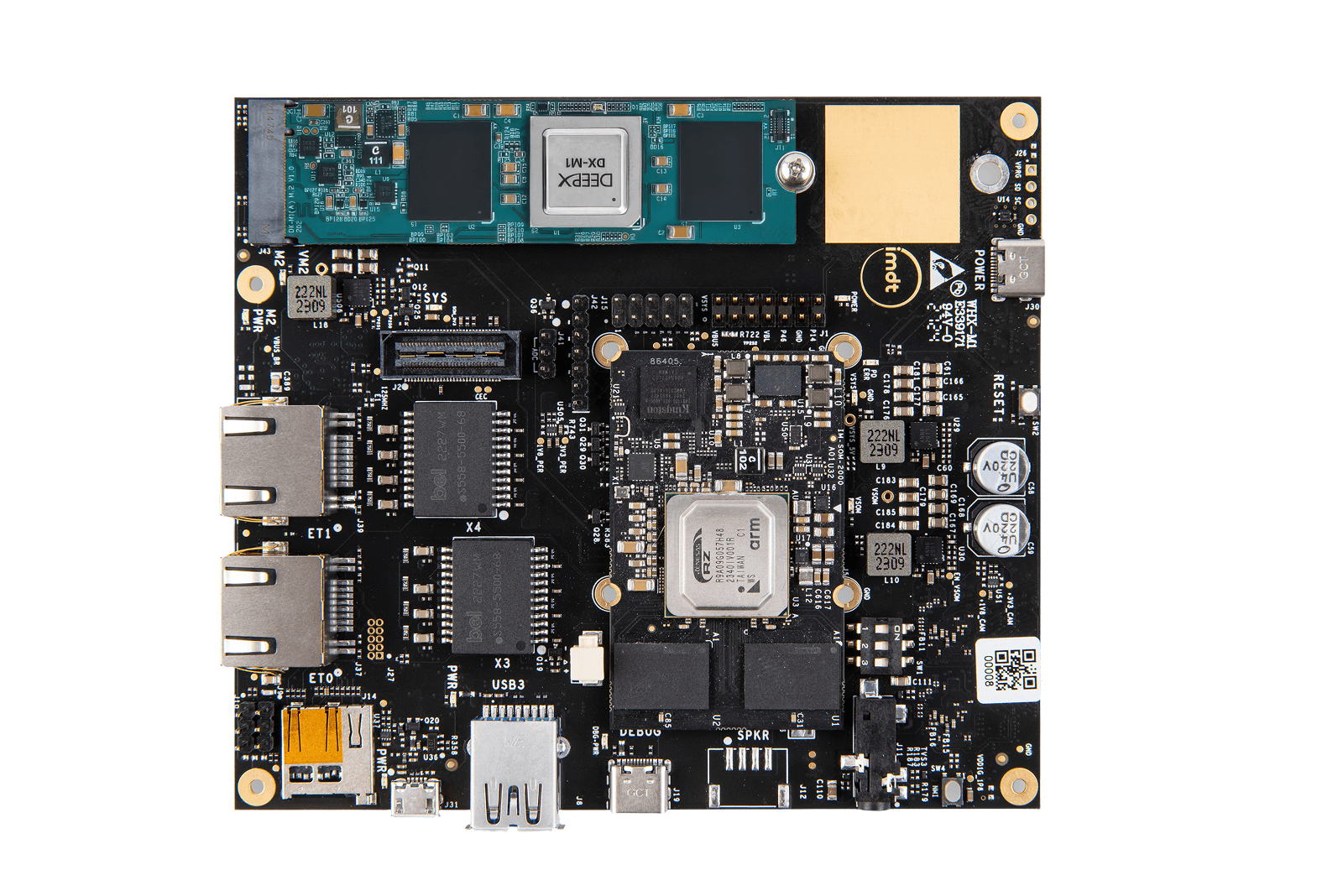

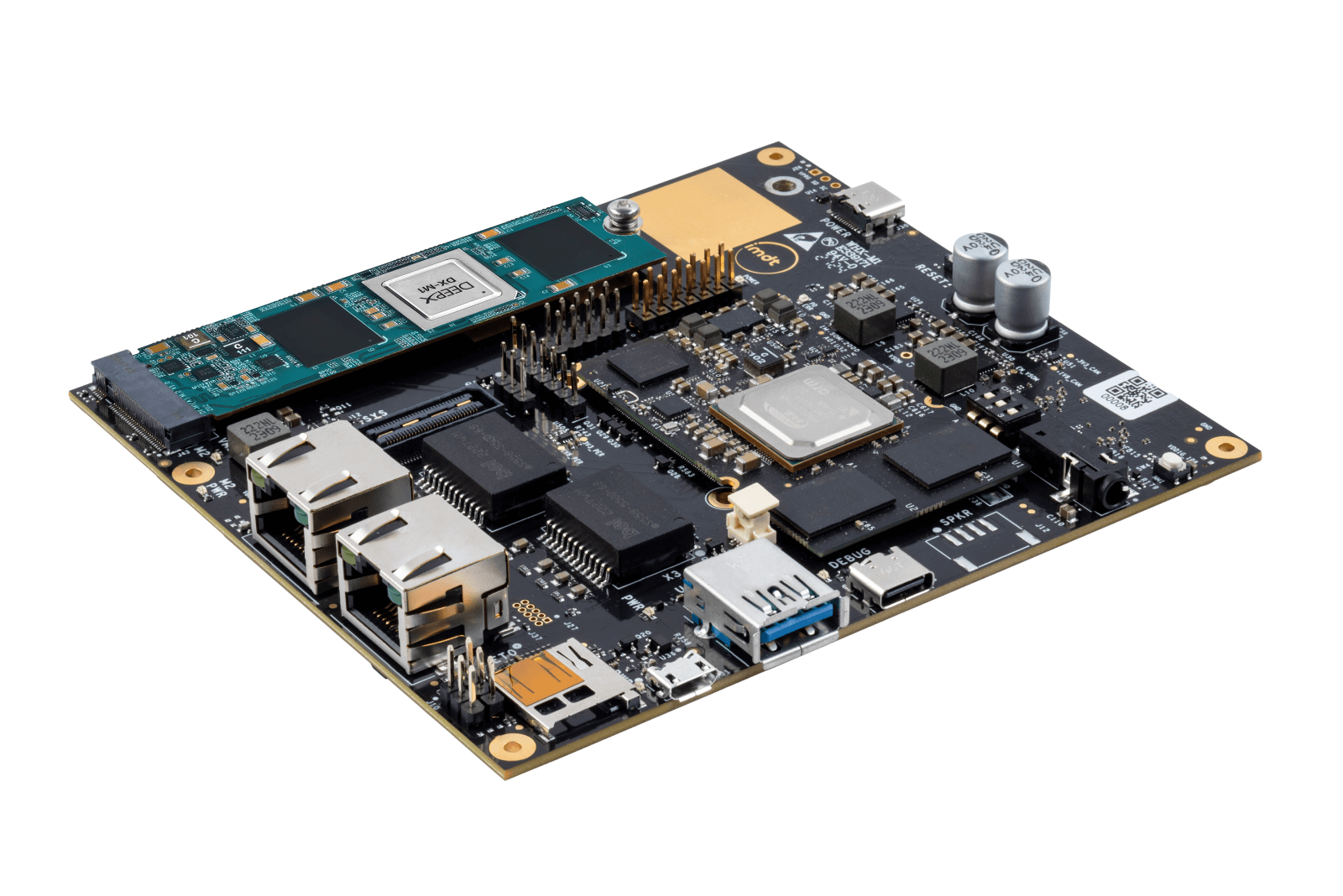

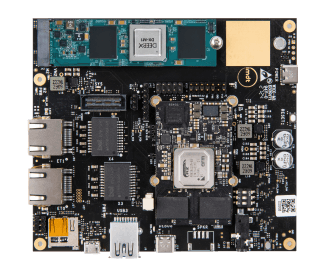

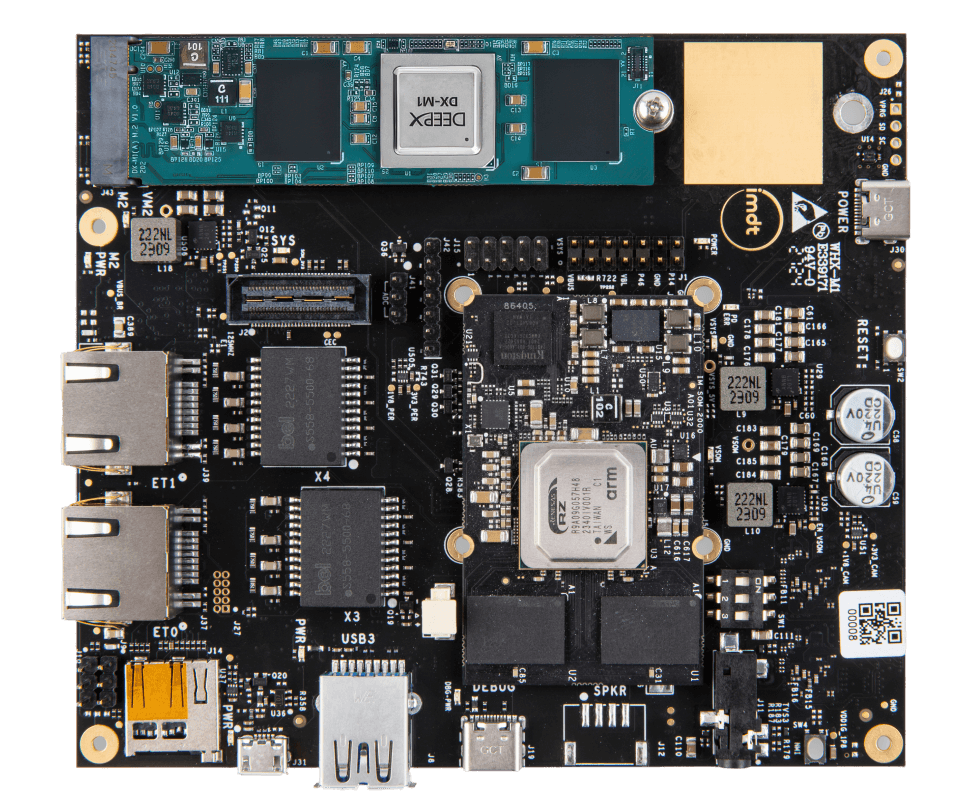

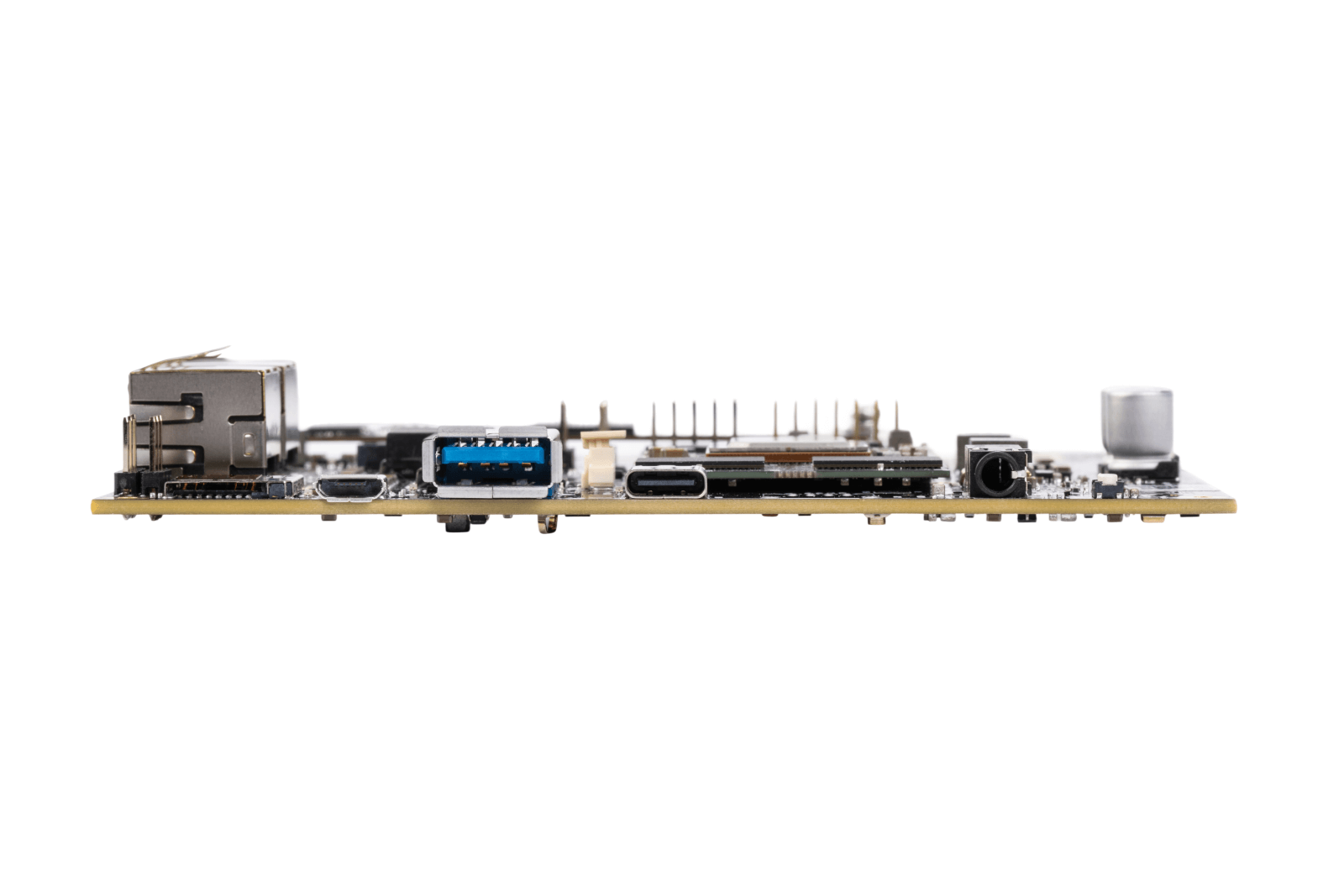

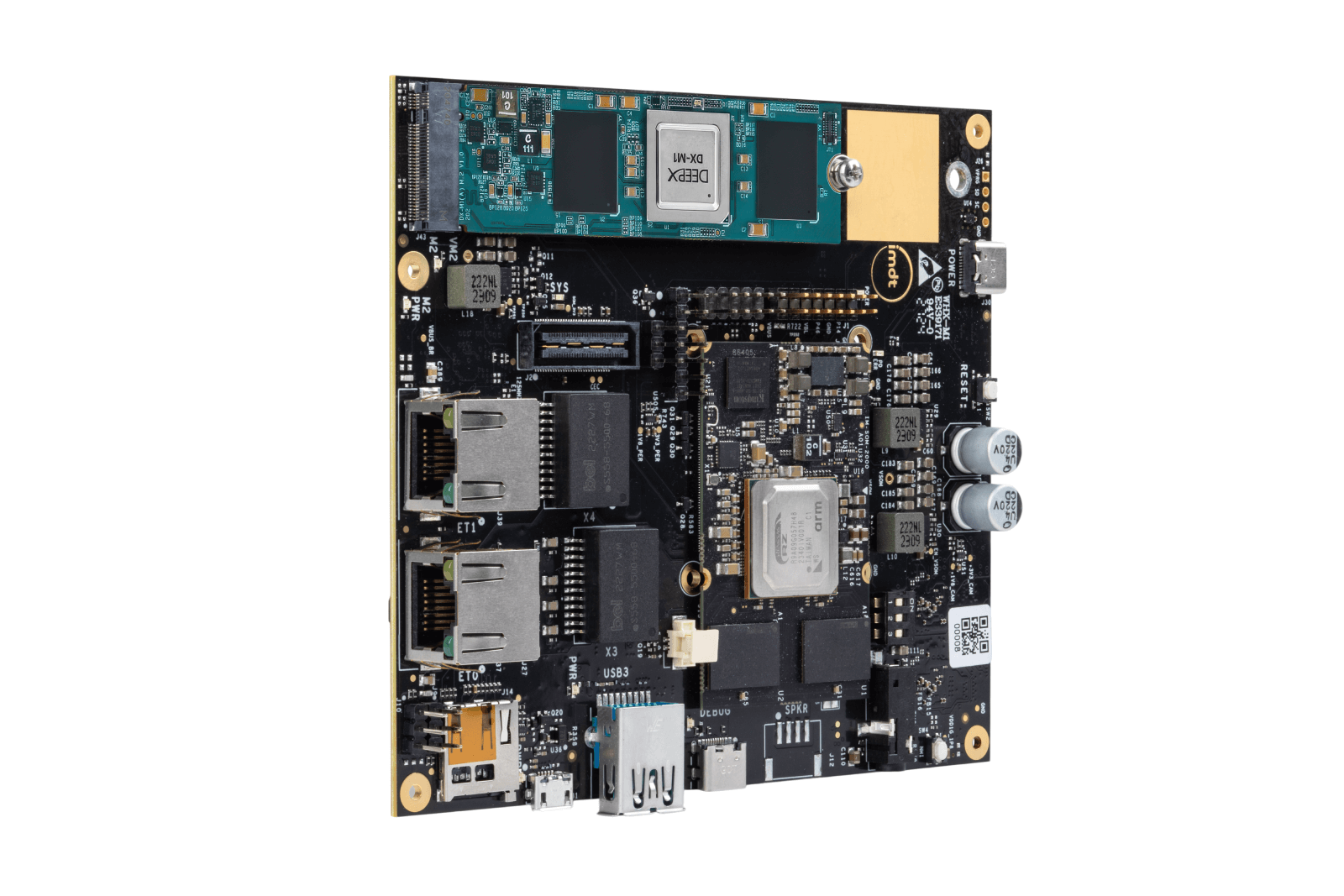

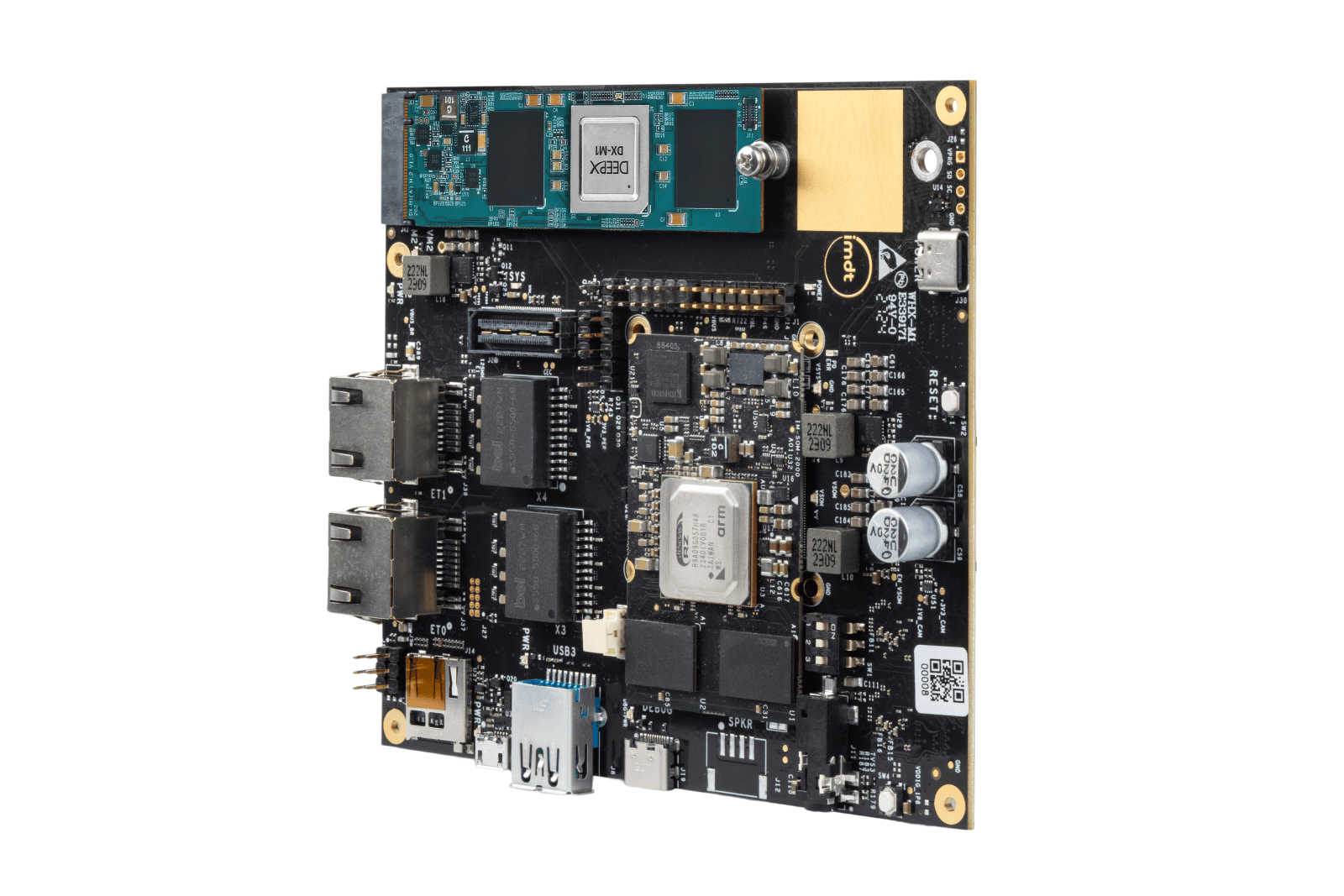

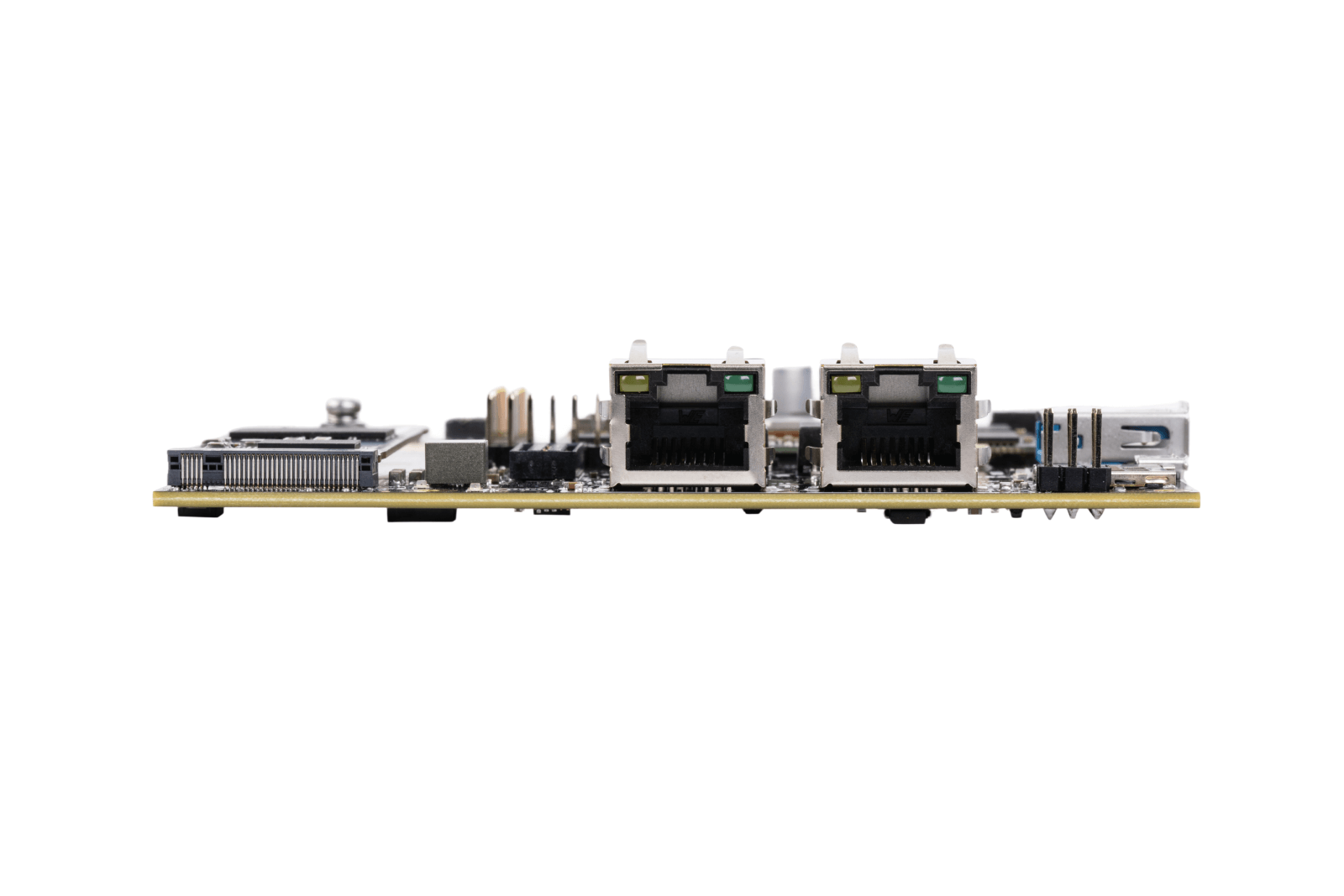

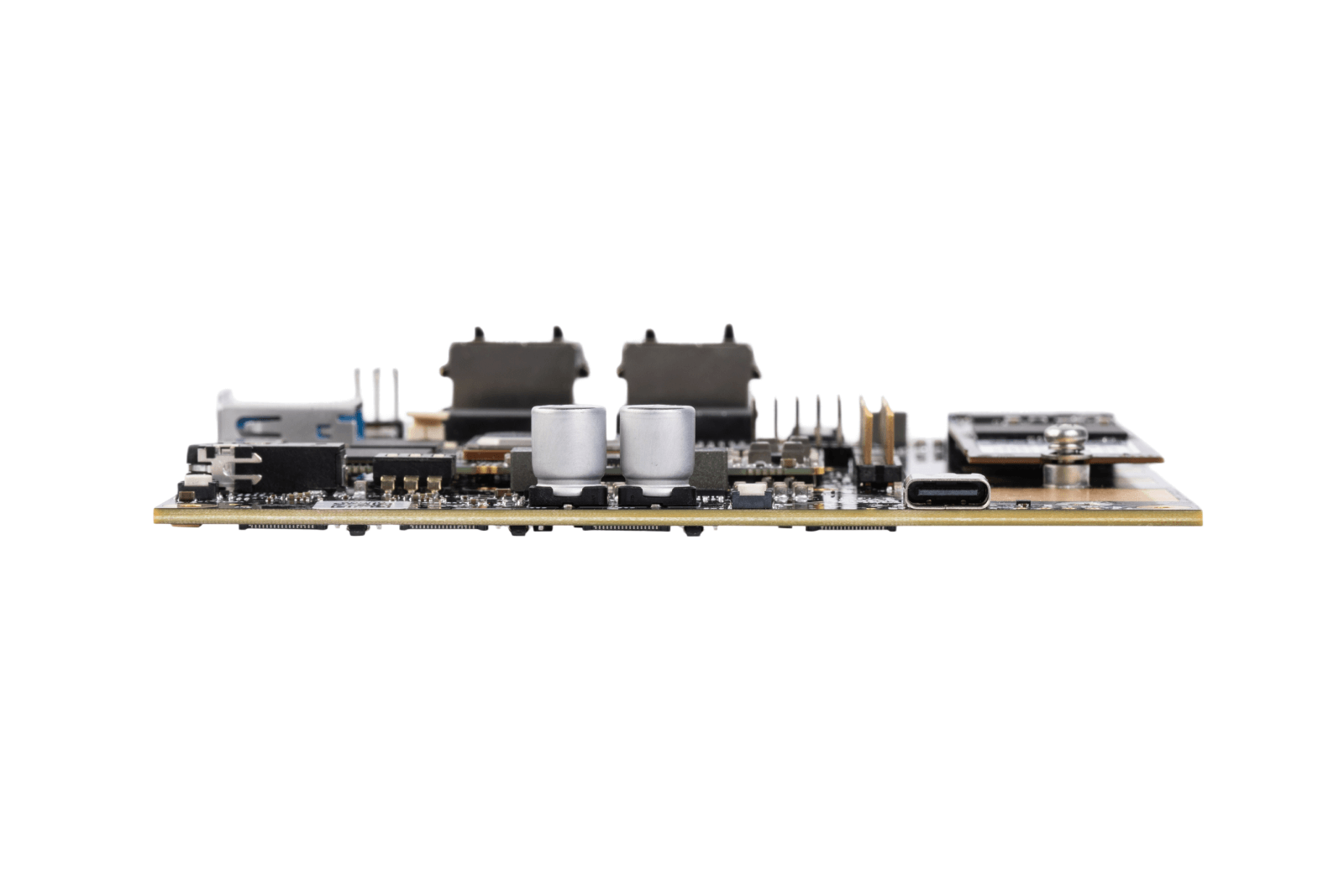

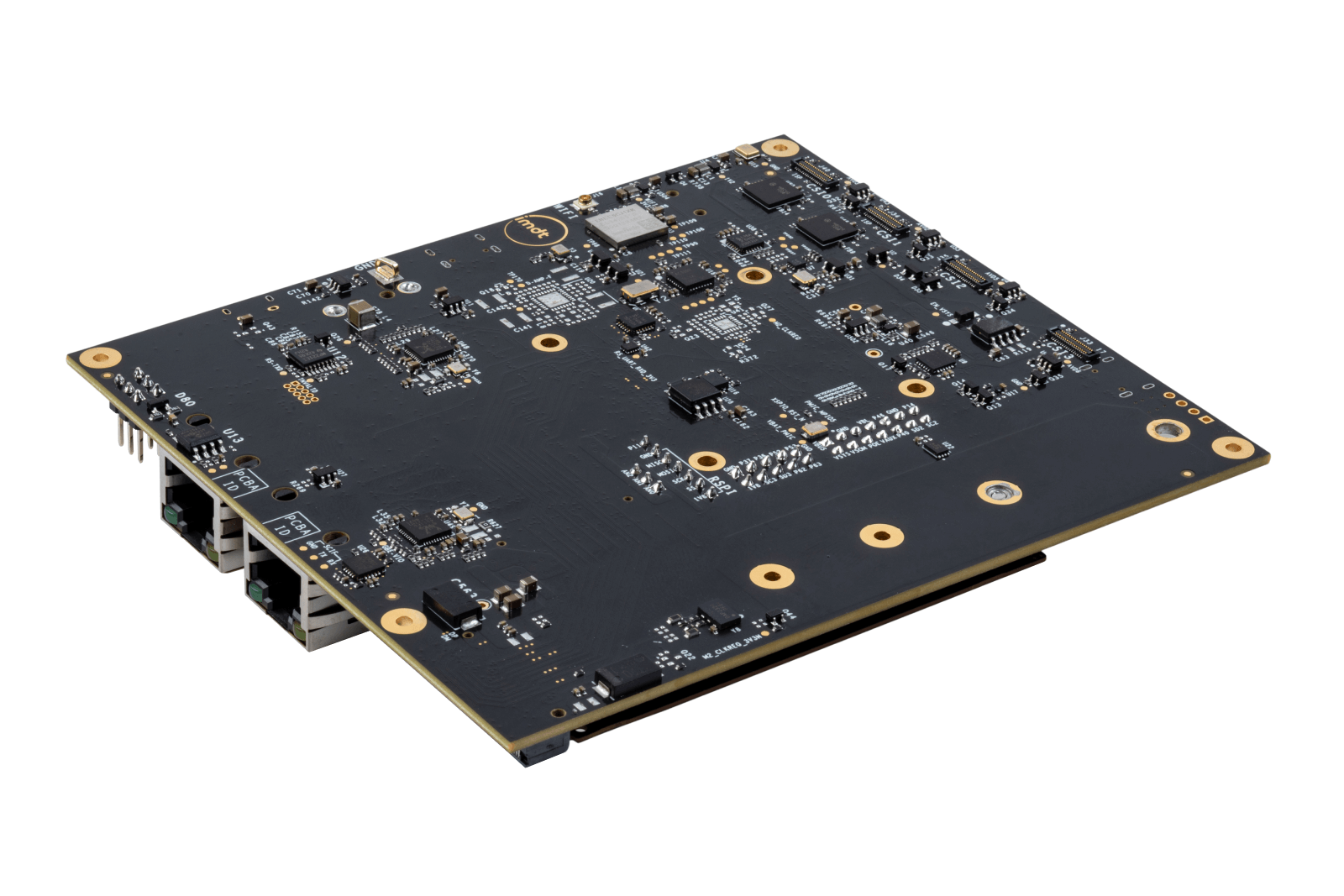

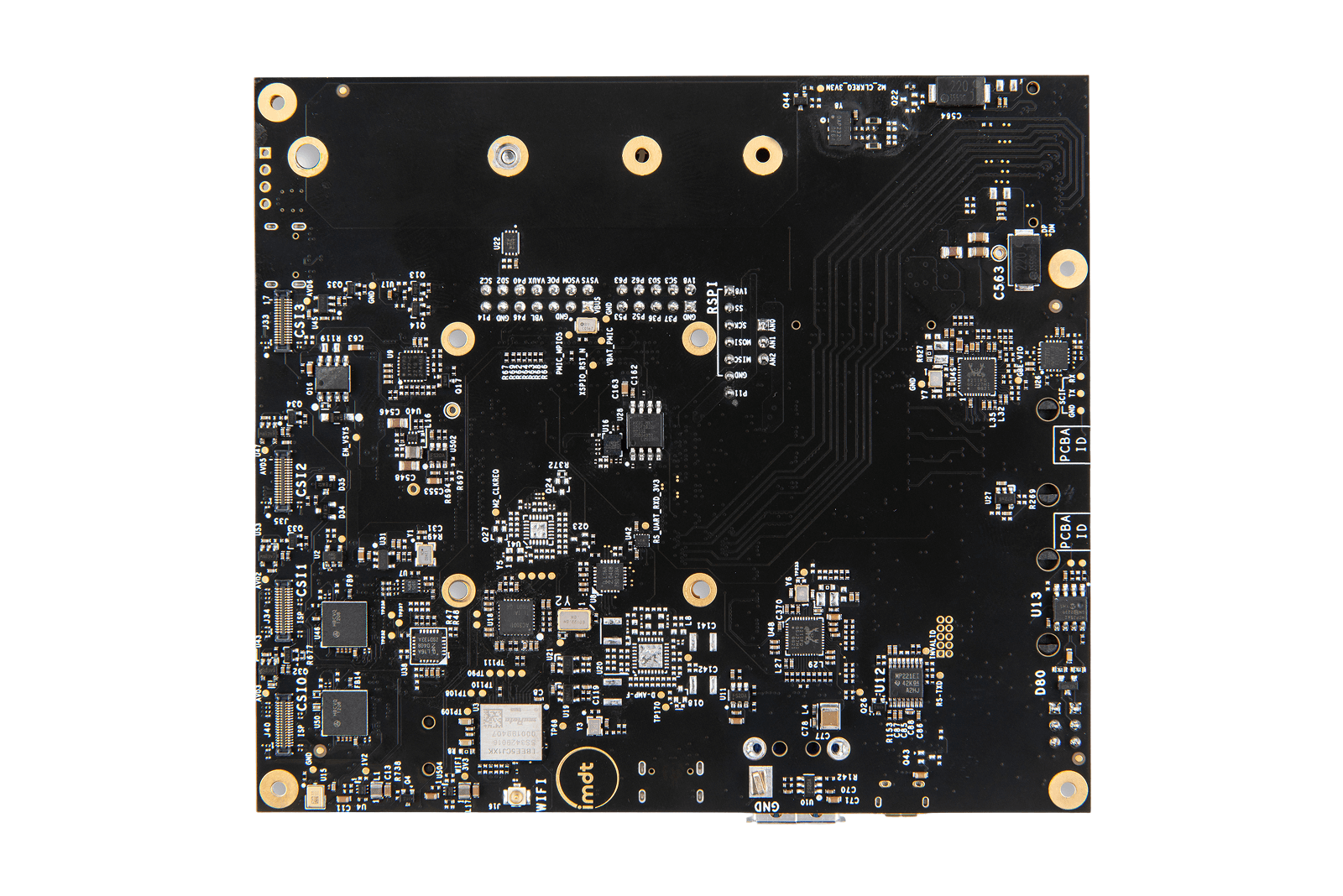

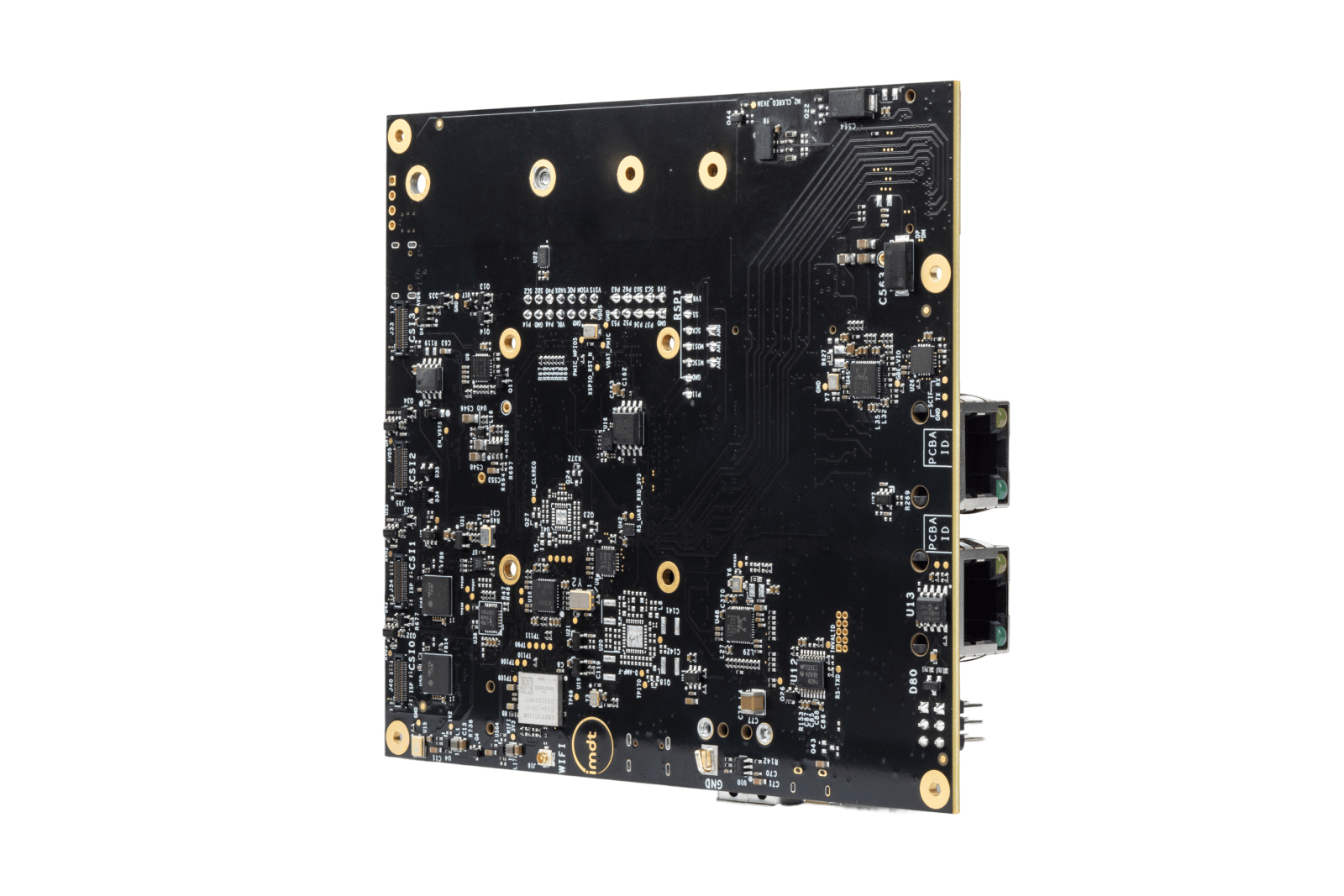

V2H DEEPX SBC

The IMDT V2H DEEPX SBC is a powerful, compact mini-computer engineered for AI-driven vision applications. Fully compatible with the DEEPX M1 module, it harnesses the M1’s industry-leading energy efficiency—delivering up to 25 TOPs (200 eTOPs) at under 5W—alongside an additional 15 TOPs (dense) and 80 TOPs (sparse) from the integrated V2H processor. This enables real-time, high-performance AI processing in a small footprint. Ideal for robotics, drones, and smart city deployments, the V2H SBC offers a balanced mix of performance, efficiency, and cost-effectiveness. Its extensive I/O options, modular assembly support, and comprehensive on-board connectivity make it an excellent choice for developers creating intelligent, compact system designs.

Download brochure

Documentation

Buy now

Low Power SBC without heat sink

Built in AI accelerator

Various communication / storage / network interfaces

Accelerators engines

On-chip SRAM

Audio

Analog/digital converter(ADC)

Internal temperature sensors

Security

Specification

Description

CPU | RZ/V2N, 4xA55+M33+2xR8, VPU, NPU, GPU, ISP^^
Memories | QSPI NOR flash, 64MBytes^^Secure EEPROM^^Micro SD card slot^^

Connectivity | Supports 4-lane PCIe Gen3^^2.4/5GHz Wi-Fi 4, Dual-band + Bluetooth 5.2 BR/EDR/LE^^2 x RJ-45 , 1000Base-T, Optional PoE^^1 x USB 3.2 type-A connector^^2 x USB 2.0 connectors^^M.2 NGFF Key-E can be used for Wifi module or AI accelerator^^M.2 NGFF Key-B can be used for cellular Module^^RS-232 transceiver on board^^CAN-FD transceiver on board^^

Camera | 4 x 4-lane MIPI CSI interface for cameras via IAS connectors^^ISP^^

Audio | 3.5mm Audio jack for stereo^^headset with mic^^Onboard PDM digital microphone^^

Sensors | Temperature & Humidity^^6-DOF IMU^^3-Axis magnetometer^^

Power | USB-C PD power^^POE+GTP (with addition of power supply module)^^Optional external power supply^^

Misc | RTC^^Fan control^^Boot DIP-Switch^^LEDs^^Debug - On board UART to USB bridge with USB-C connector^^
Extensions | SPI, I2C, I2S, PDM, GPIOs, Analog headers^^Extension connectors with power and I2C^^

Dimensions | 125 x 110 x 15mm^^

‍

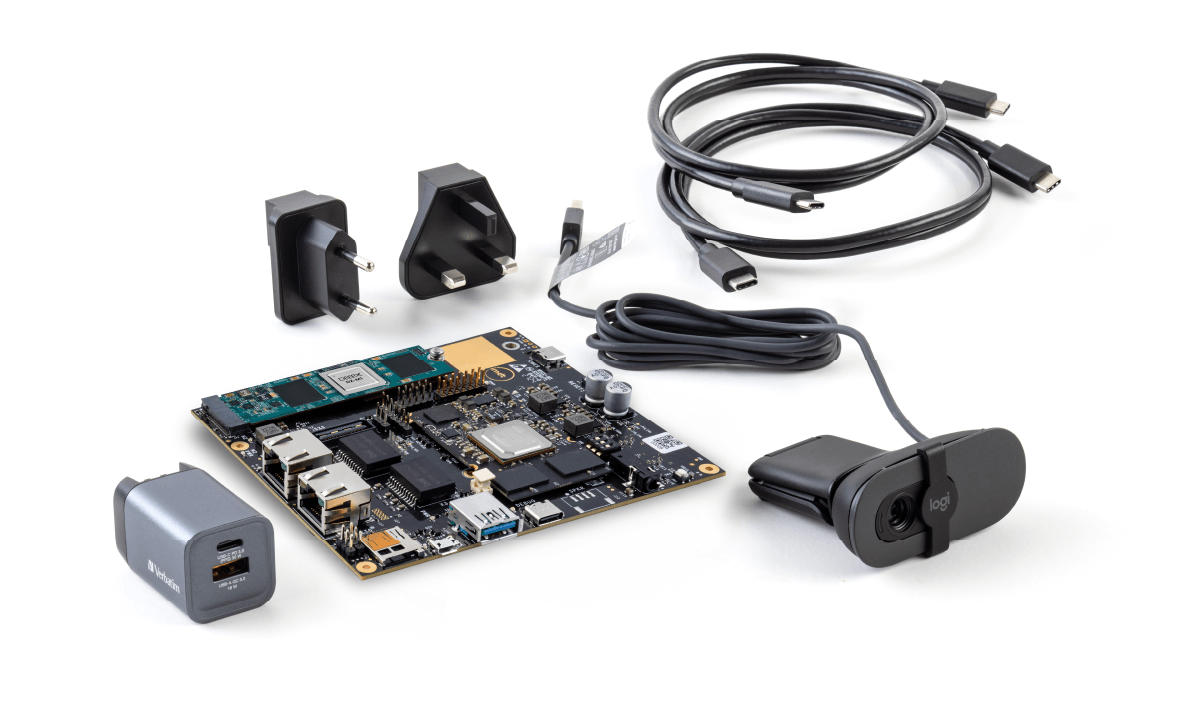

The IMDT V2H DEEPX Evaluation Kit provides a ready-to-use development environment for streamlined prototyping and system integration. Built around the V2H DEEPX SBC and fully integrated with the DEEPX M1 module, the kit exposes all key interfaces and connectivity features, making it easy to evaluate performance and explore real-world AI use cases. It enables developers to accelerate testing, fine-tune applications, and validate designs with minimal setup effort. It is an ideal platform for transitioning quickly from concept to deployment.
