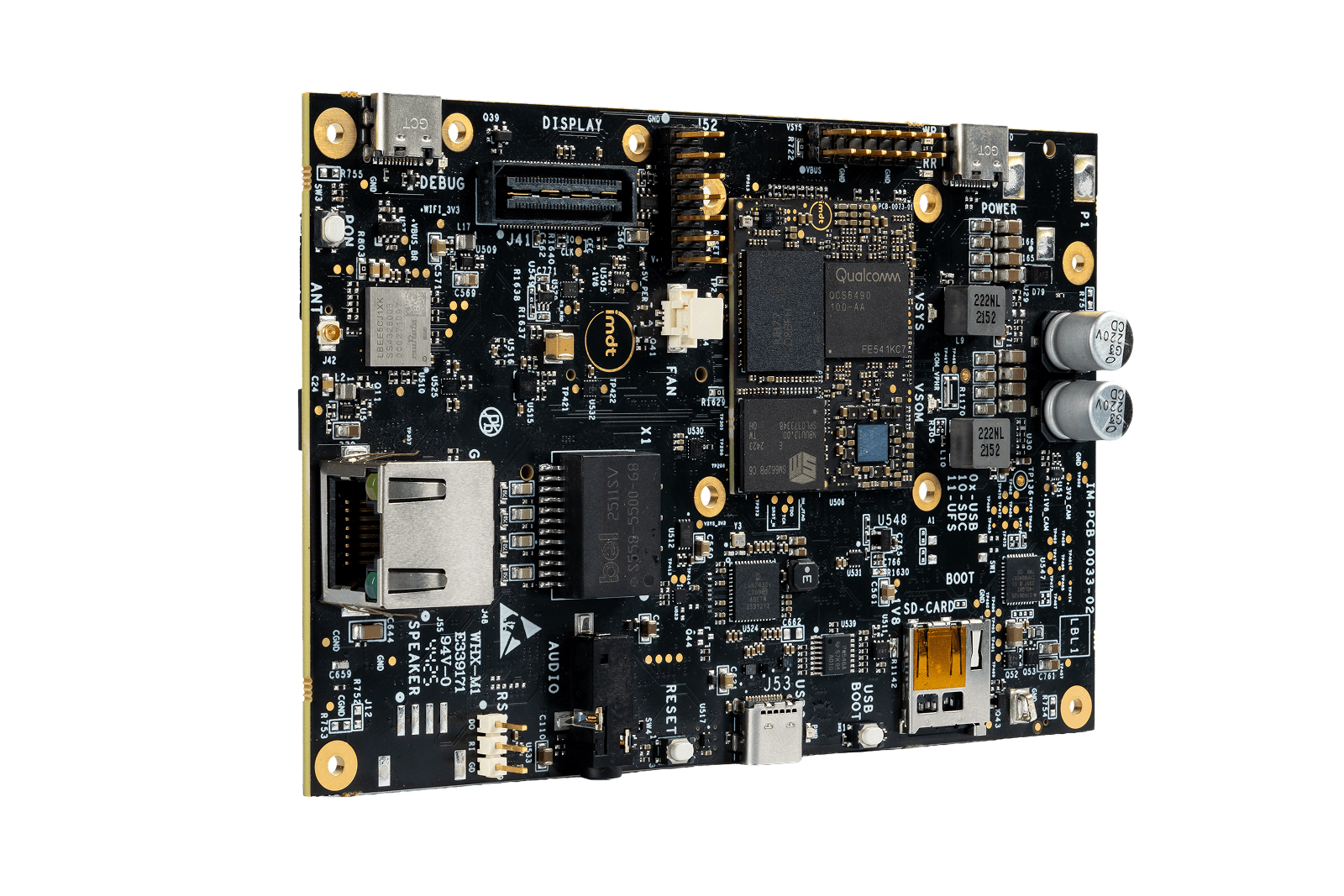

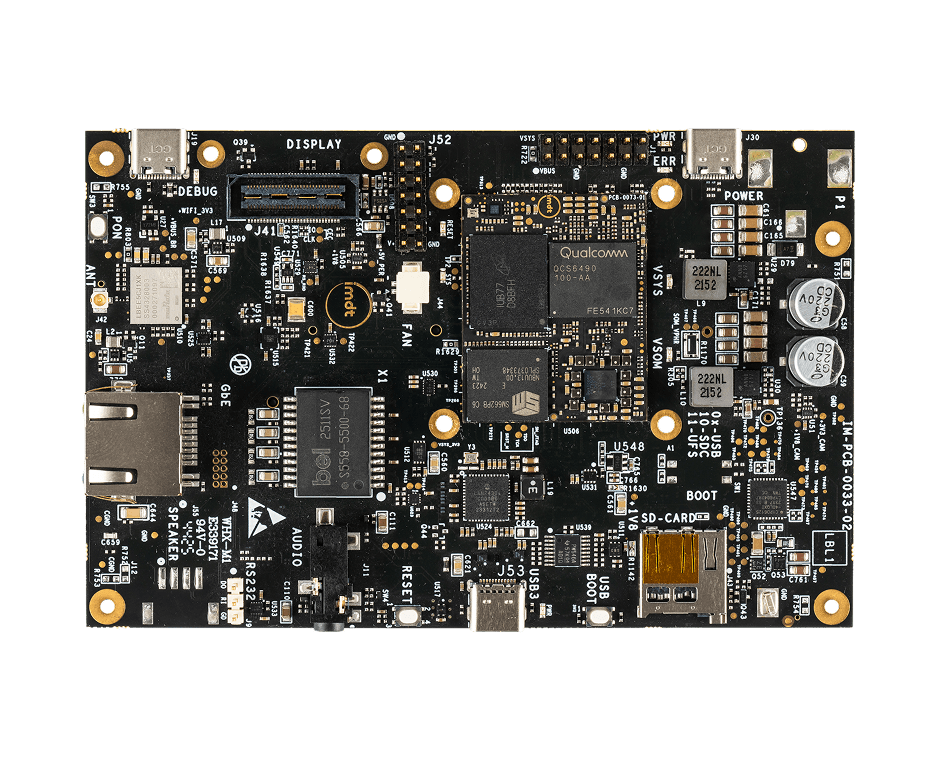

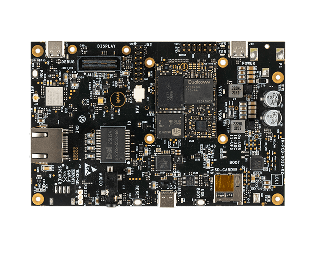

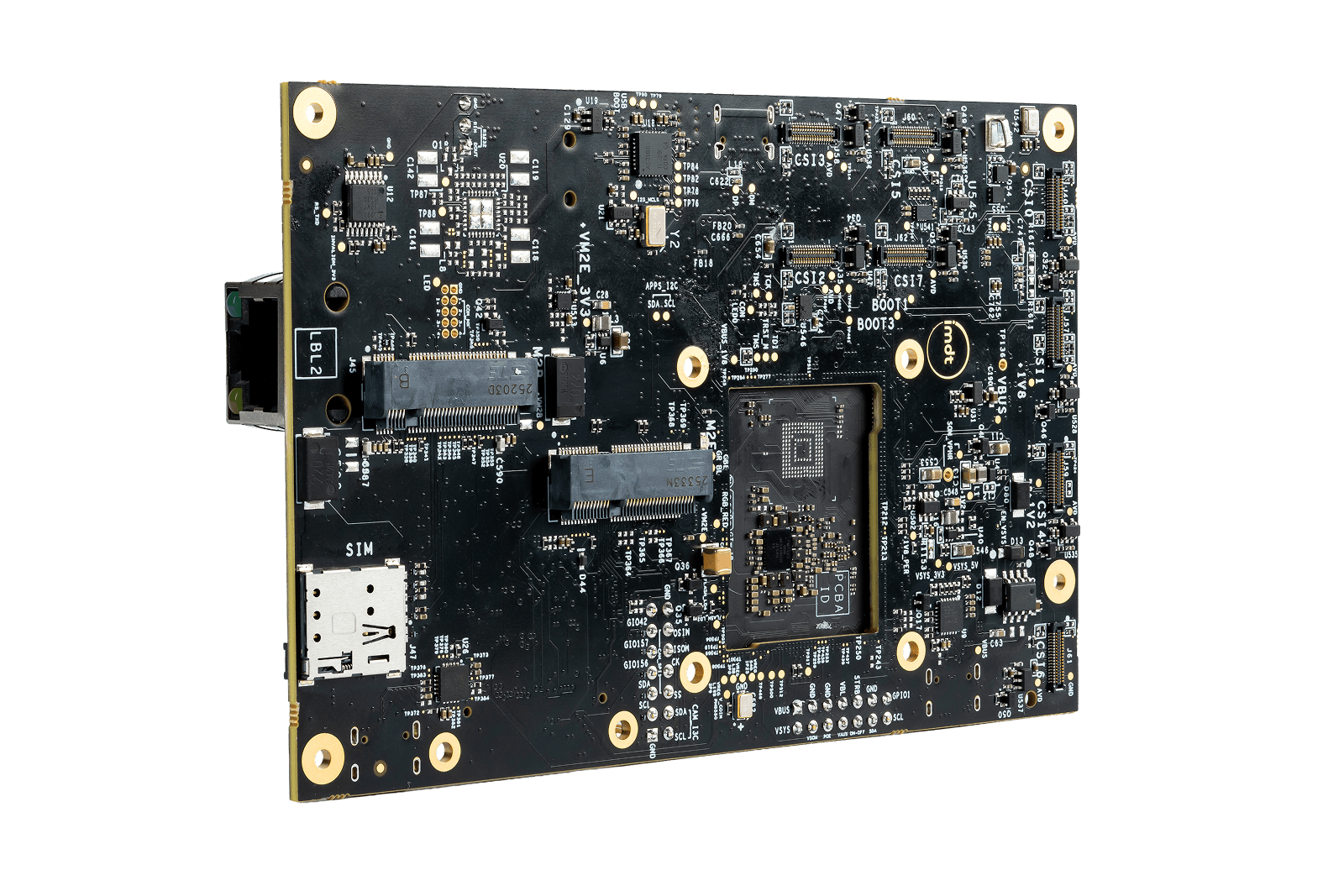

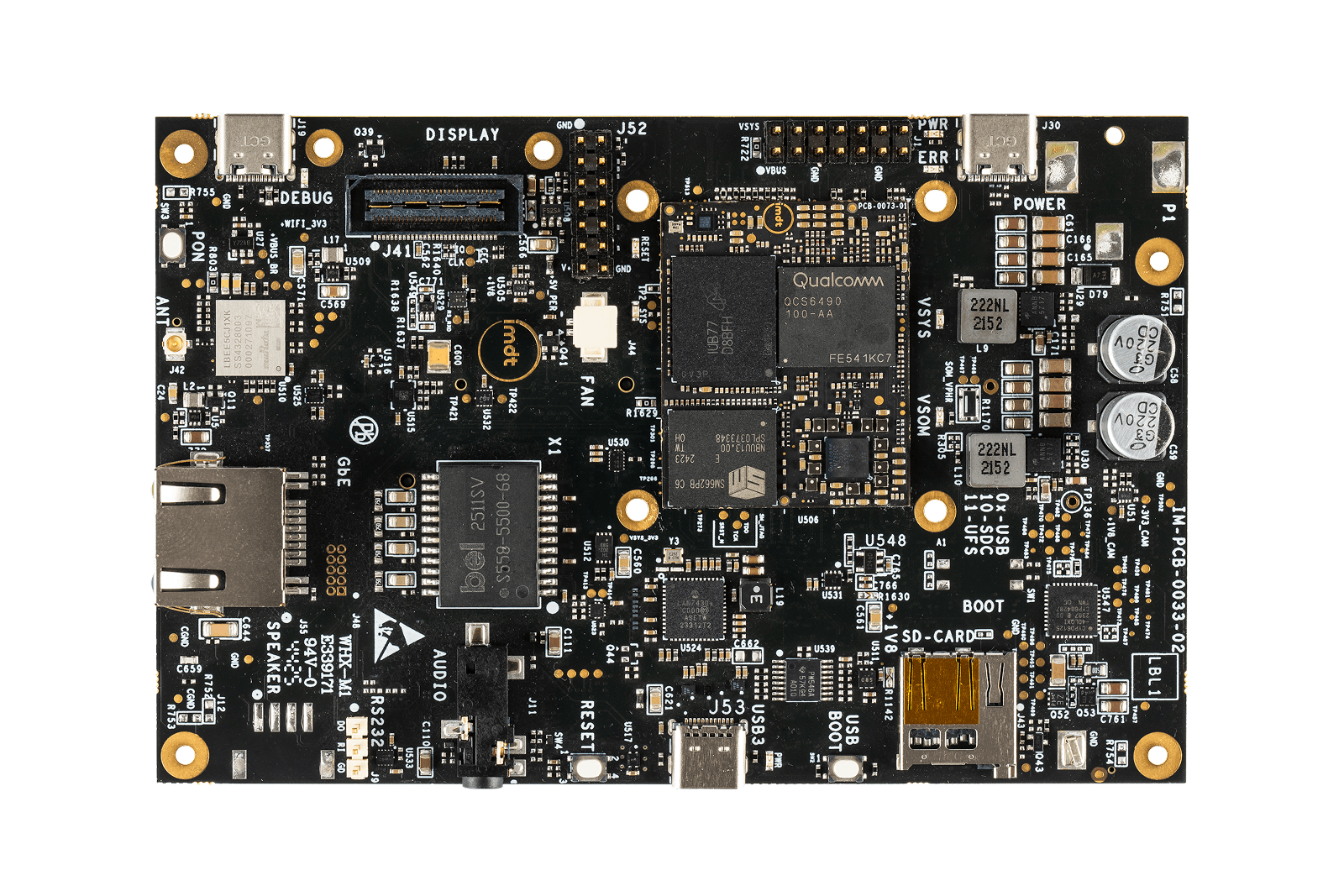

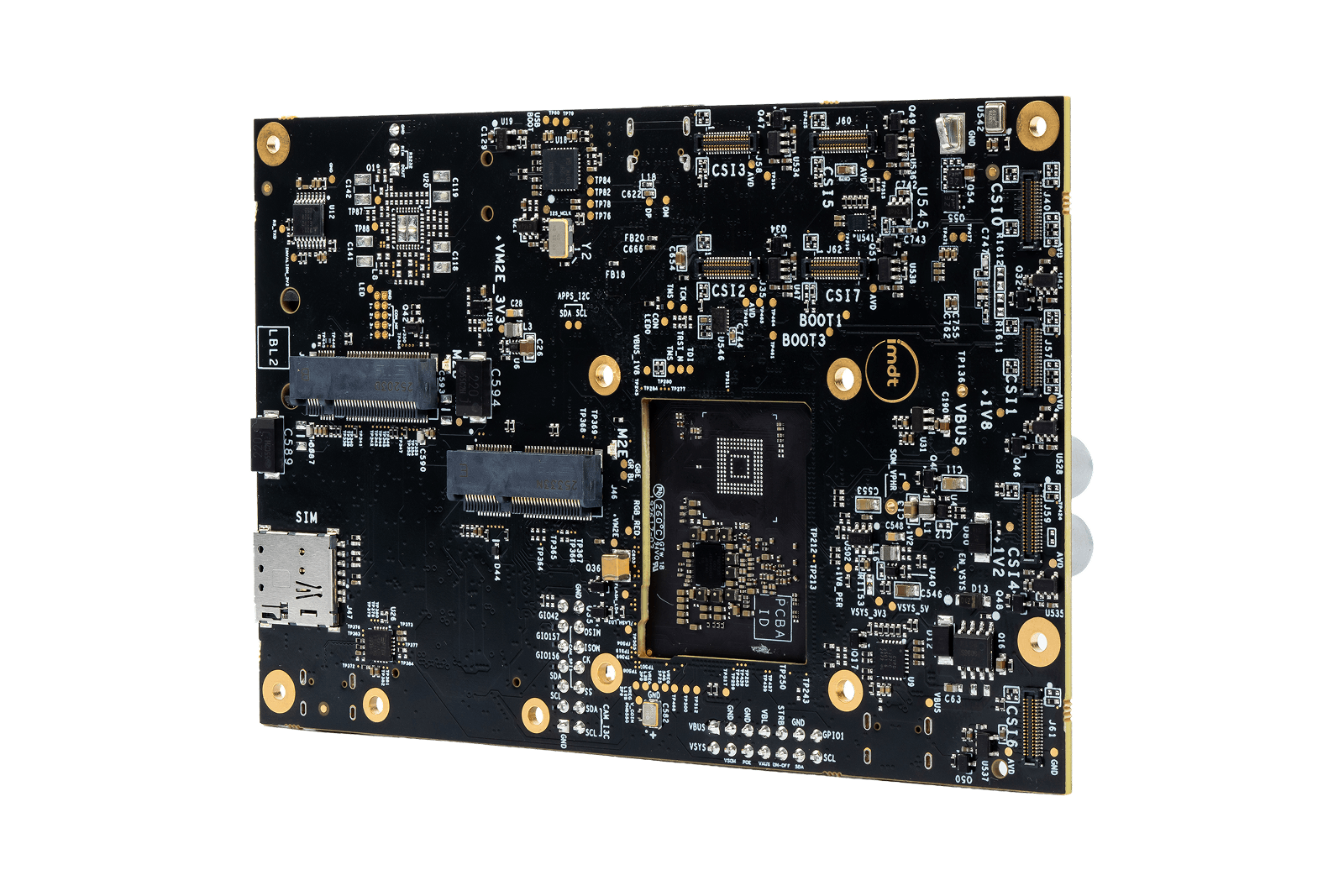

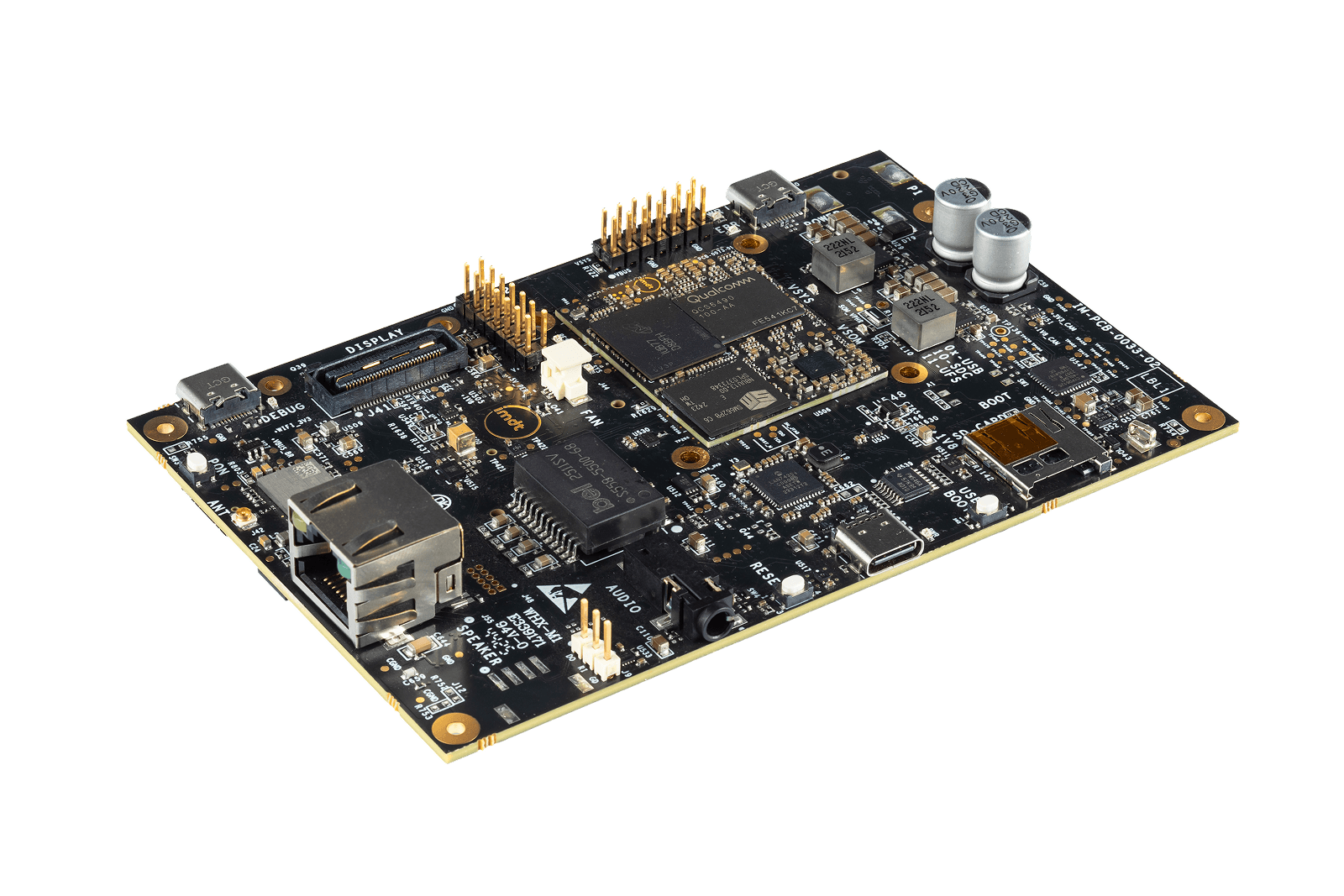

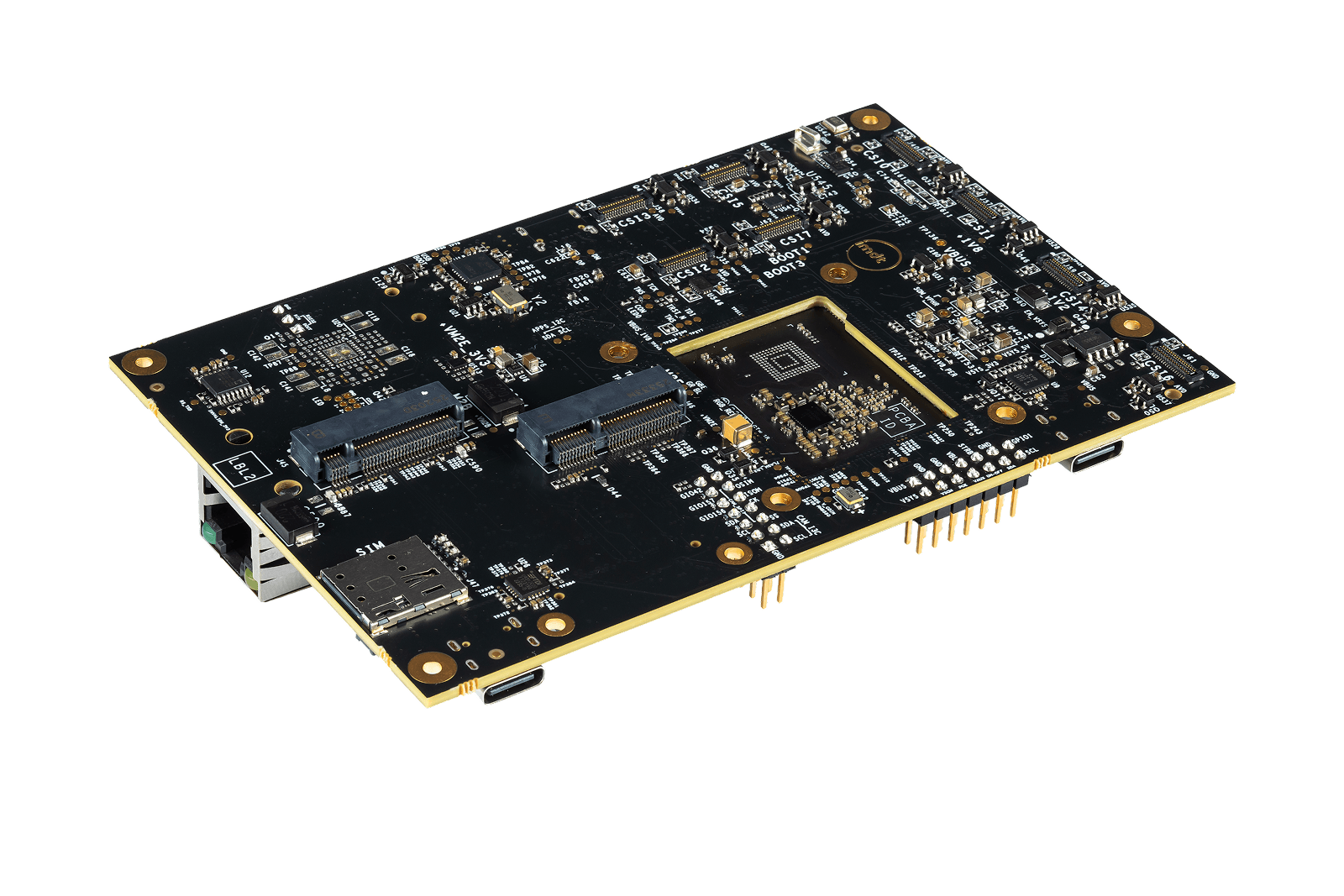

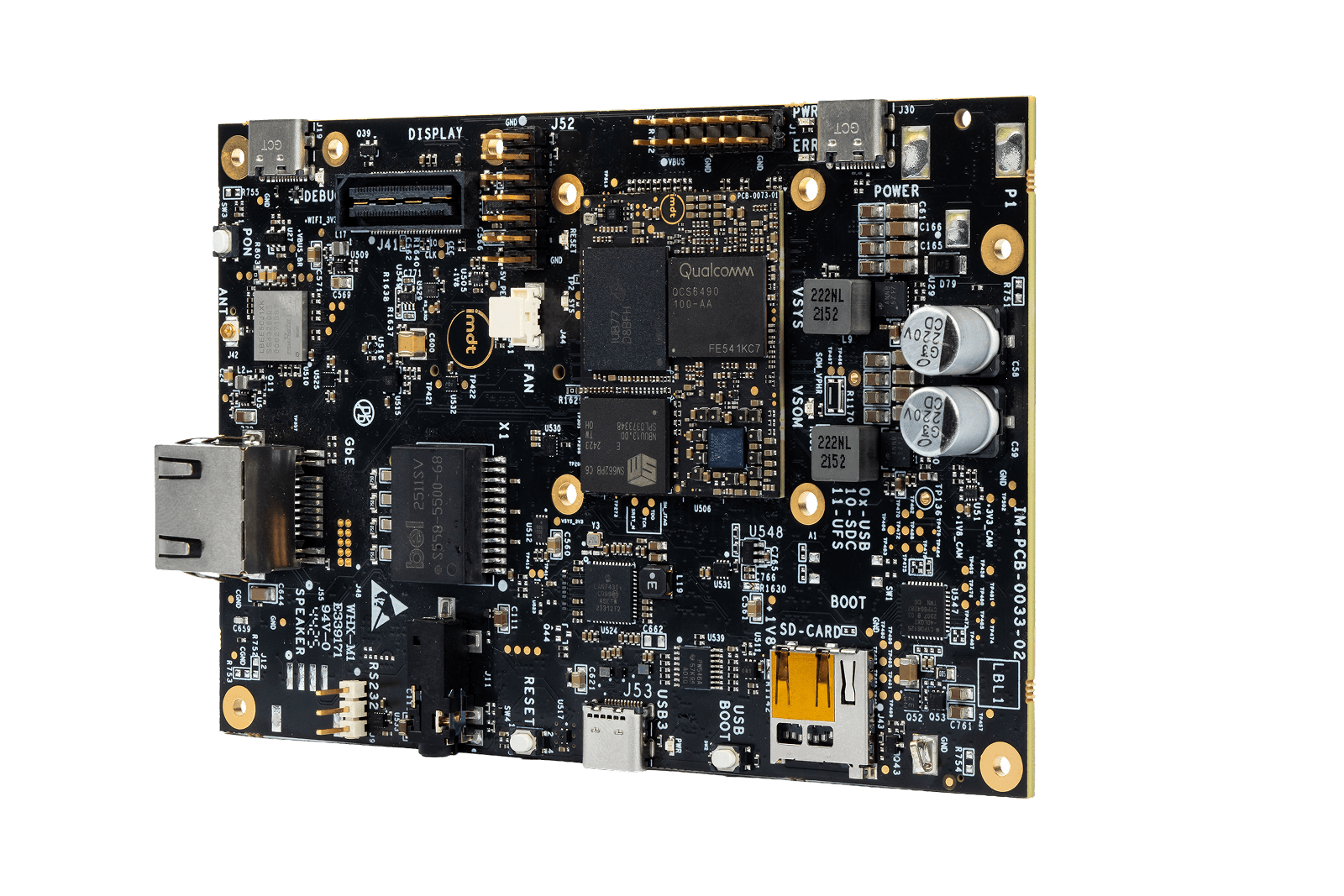

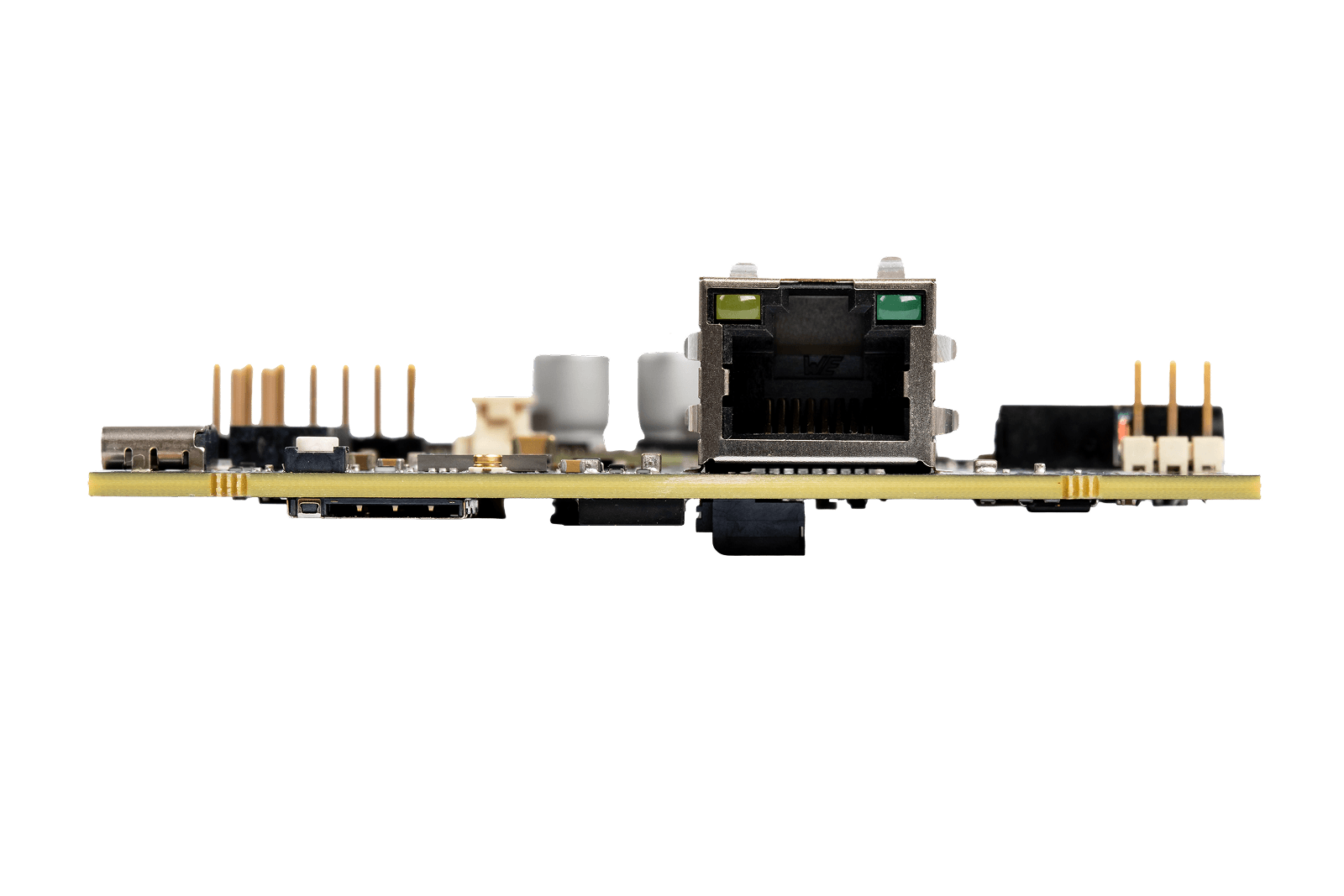

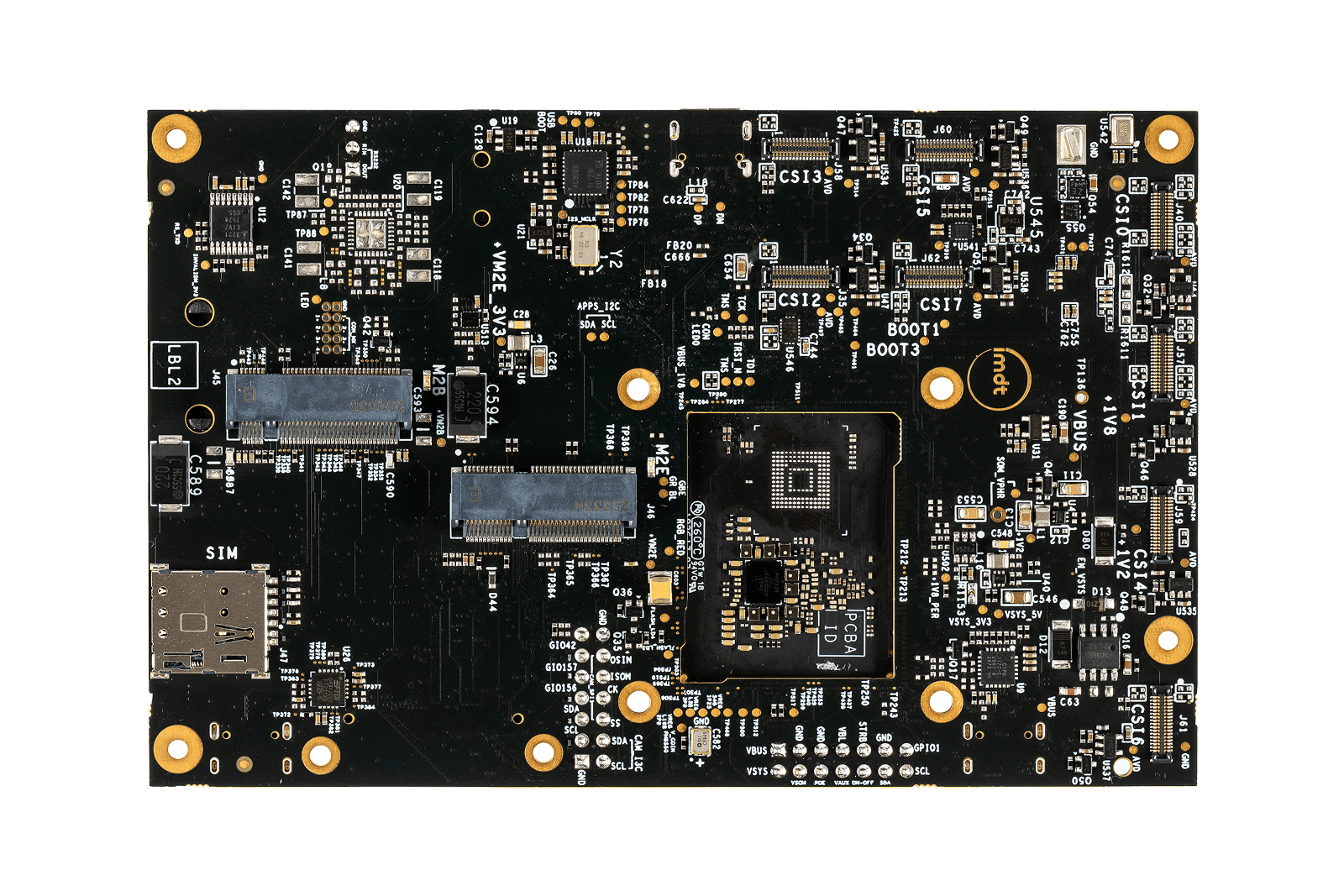

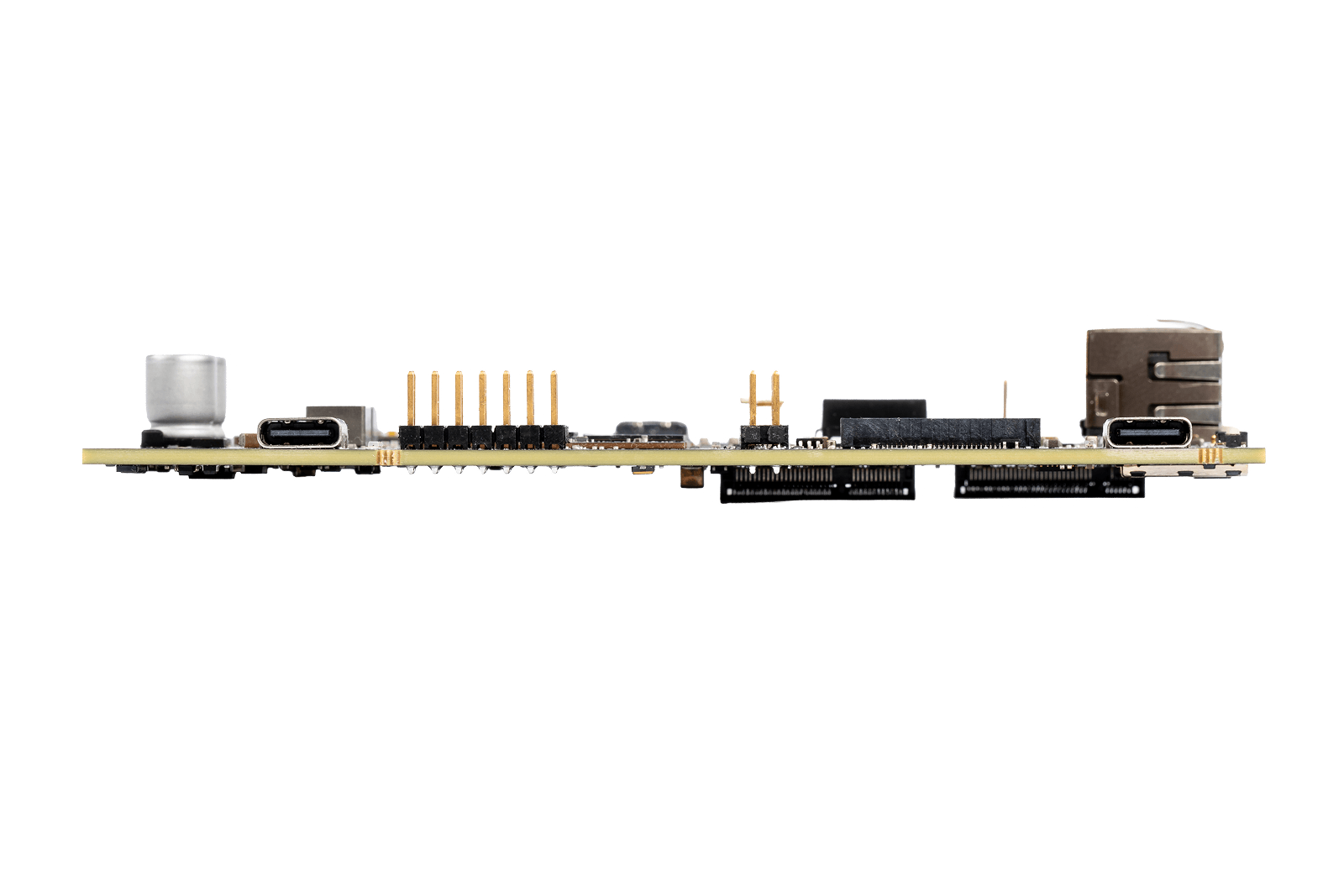

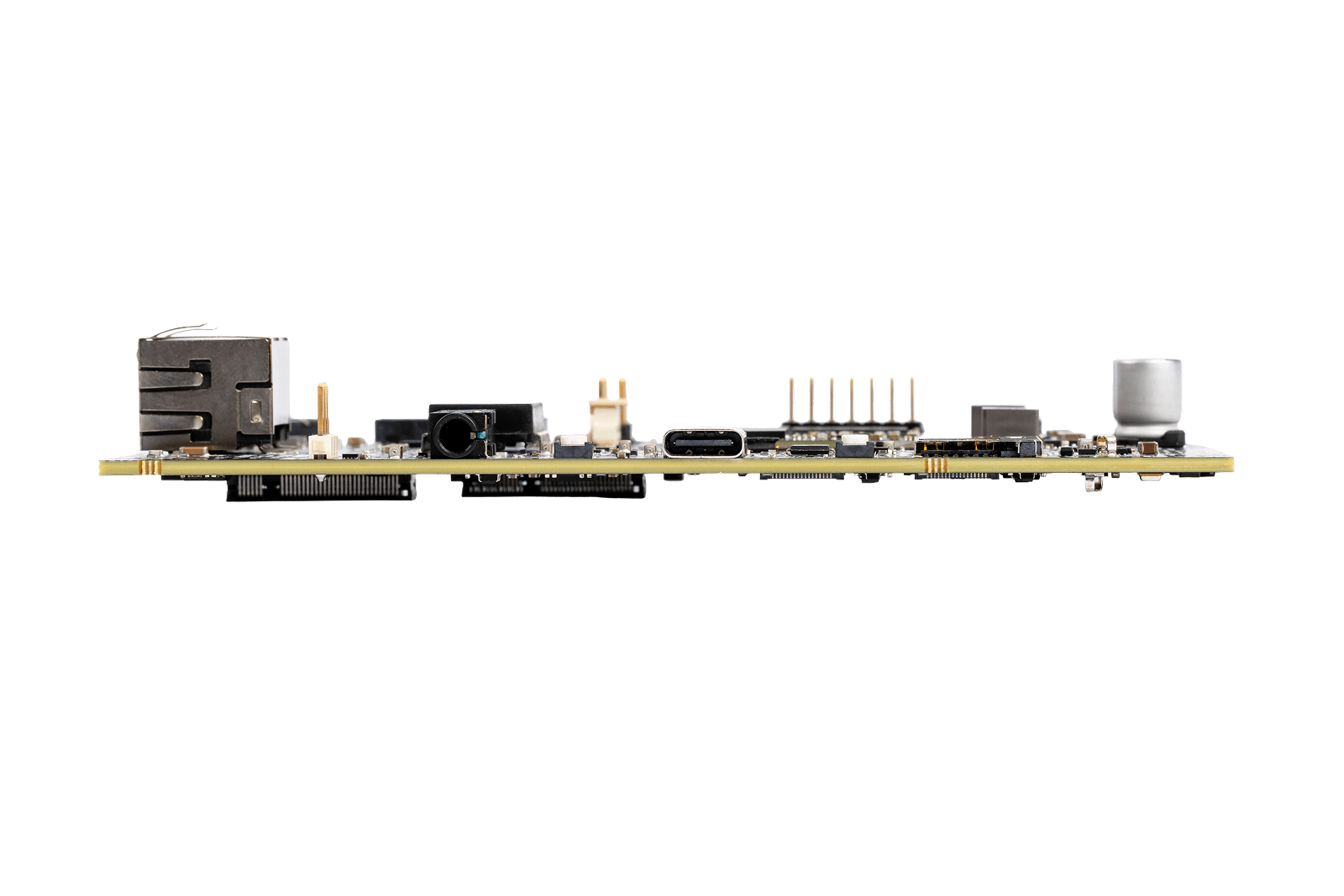

QCS6490/5430 SBC
The IMDT QCS6490/5430 SBC transforms the IMDT QCS6490/5430 SOM into a complete edge-AI platform built for real-world deployment across smart retail, logistics, industrial systems, and connected smart-city devices. Powered by the Qualcomm® QCS6490/5430, the SBC delivers up to 12 TOPS of AI compute with efficient power usage, multi-camera support, and rich wireless and wired connectivity. With five 4-lane MIPI-CSI camera interfaces, extensive connectivity options and onboard sensing, the SBC provides a solid foundation for AI vision, automation, and analytics applications. Its balanced performance and competitive system cost make the IMDT QCS6490/5430 SBC a strong choice for scaling reliable AI solutions into the field.
Core benefits
Multi-camera solution
Small form factor
Pin-to-Pin compatible with QCS8550
Low power
Buy now
No items found.
Industrial-Grade Longevity
Qualcomm Kryo central processing unit (CPU), X1.5 compute power
Multi-OS Ecosystem Support
Premium Graphics & Display
Qualcomm Spectra 18-bit triple cognitive image signal processor (ISP)
Extended Temperature Range

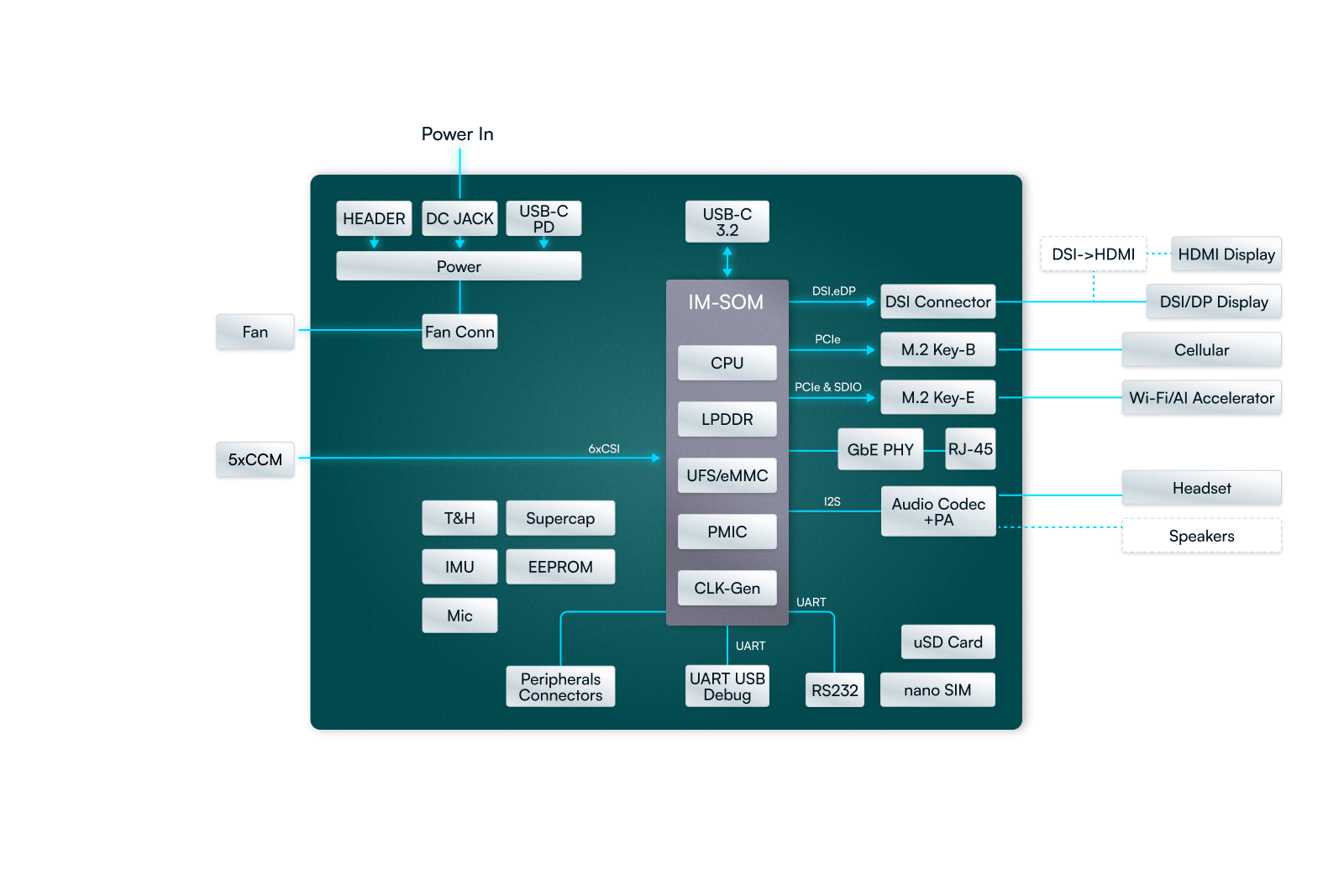

Specification
Description
- CPU | QCS-6490-1^^
- Memories | LPDDR5, 4/8GB^^UFS 3.1 64GB or eMMC 5.1 32GB^^SD card slot
- Connectivity | USB3.1 gen1 5Gbps, Type-C^^2x Gen3 PCIe (1x1-Lane, 1x2-Lane)^^M.2 Key-B with PCIe interface^^M.2 Key-E with PCIe interface^^Gigabit Ethernet with RJ-45 connector
- Camera | 5x 4-lane MIPI CSI interface for cameras^^ISP – Qualcomm spectra
- Display | 4-lane DSI, with touch I/F^^eDP
- Audio | Supports headset (including Mic)^^PDM microphone
- Sensors | 6-Axis Accelerometer and Gyro^^3-Axis Magnetometer^^Temperature & Humidity sensor
- Control I/Fs | RS-232^^SPI^^I2C^^GPIOs
- Debug | On board UART-USB bridge with USB-C connector
- Power | Single power input: USB-C PD / DC-Jack / 2.54mm Header
- Dimensions | 125mm x 81mm x 20 mm

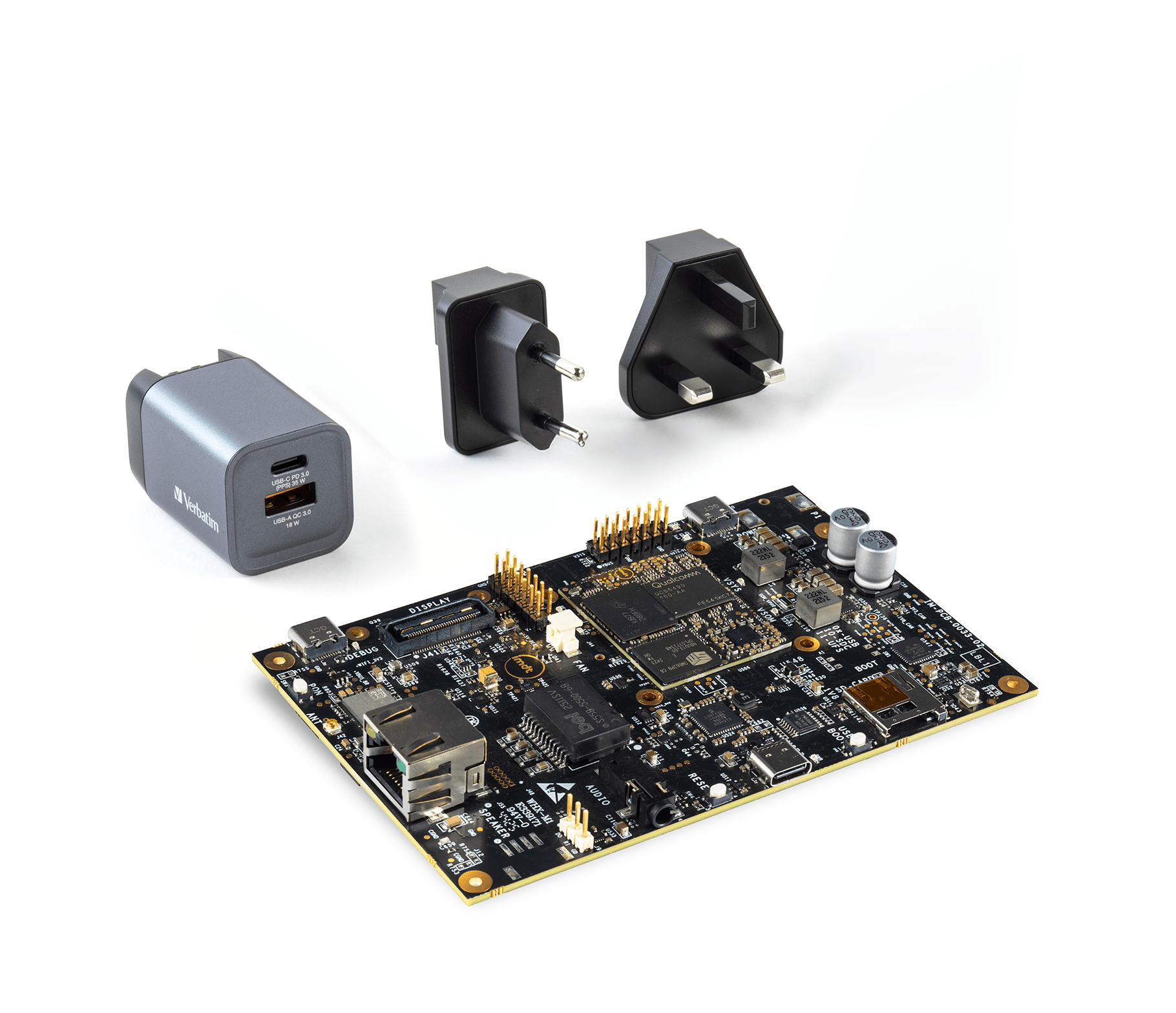

What's in the box
