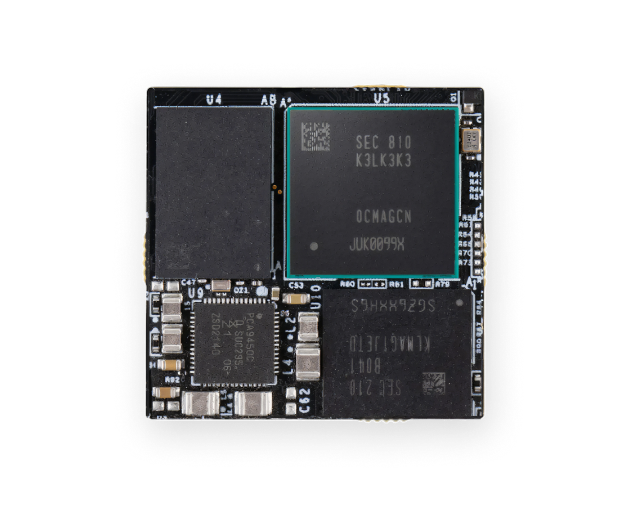

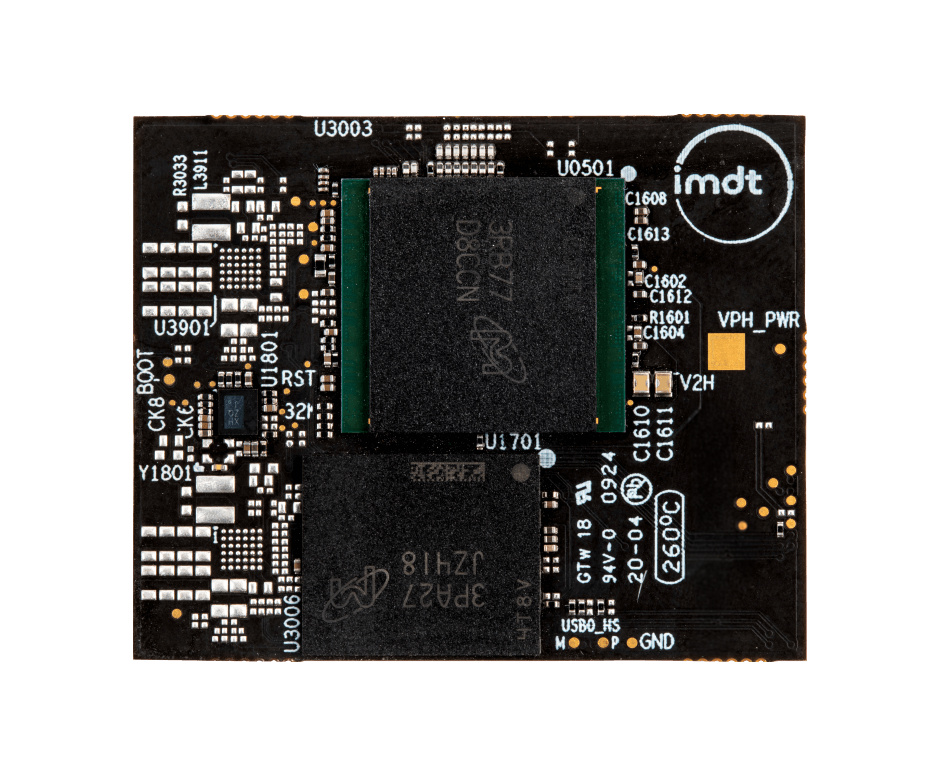

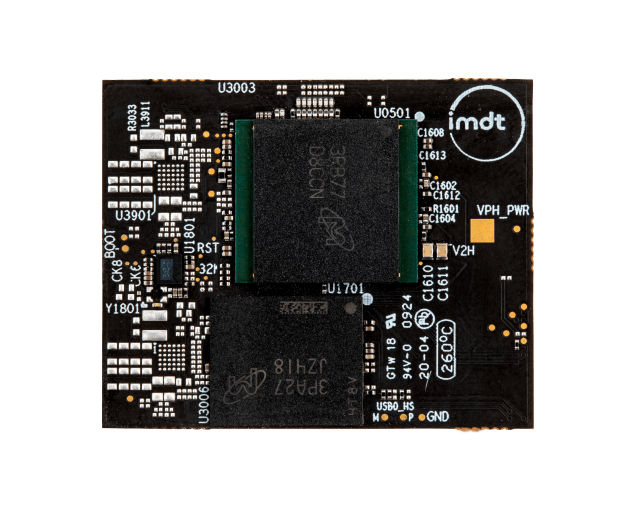

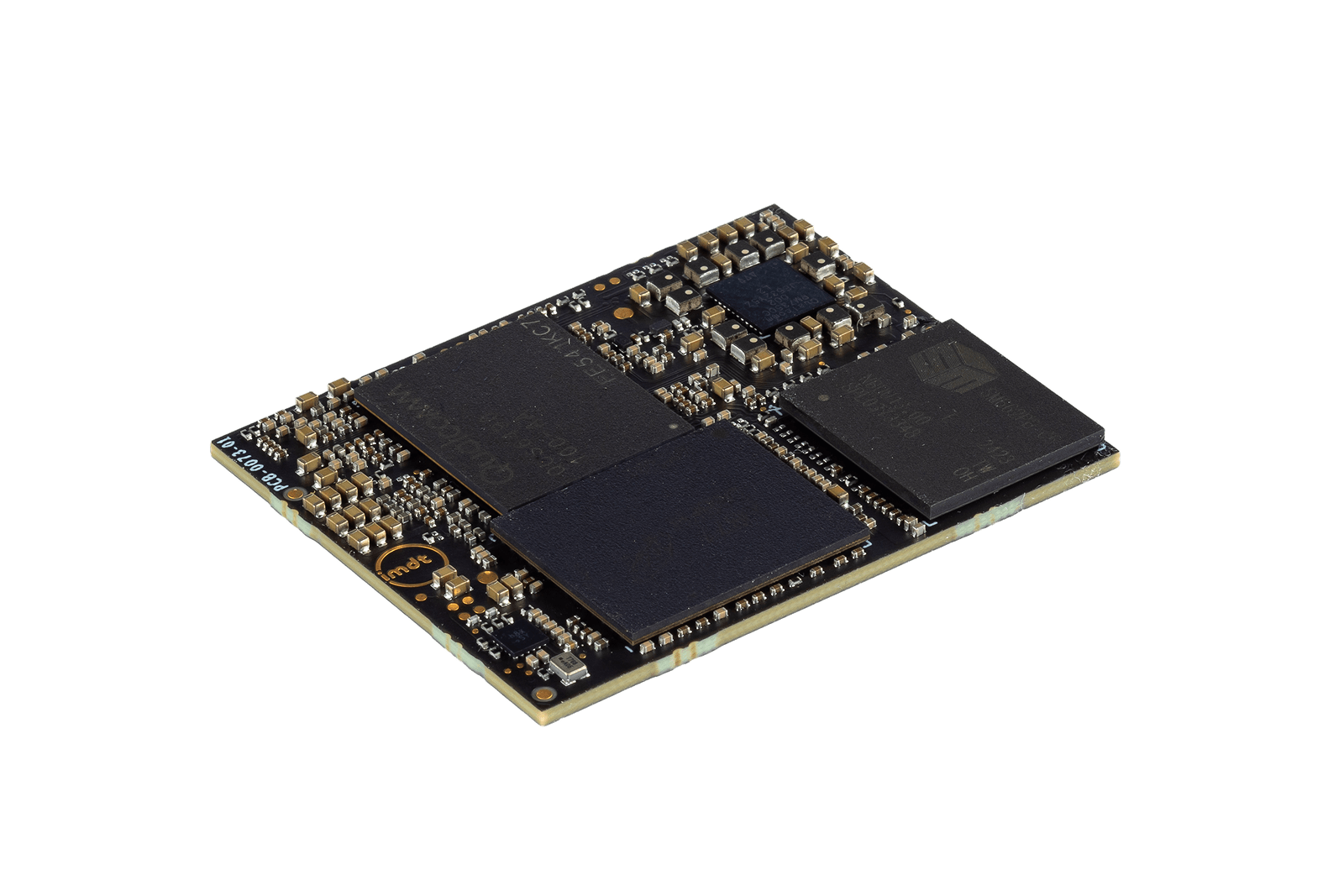

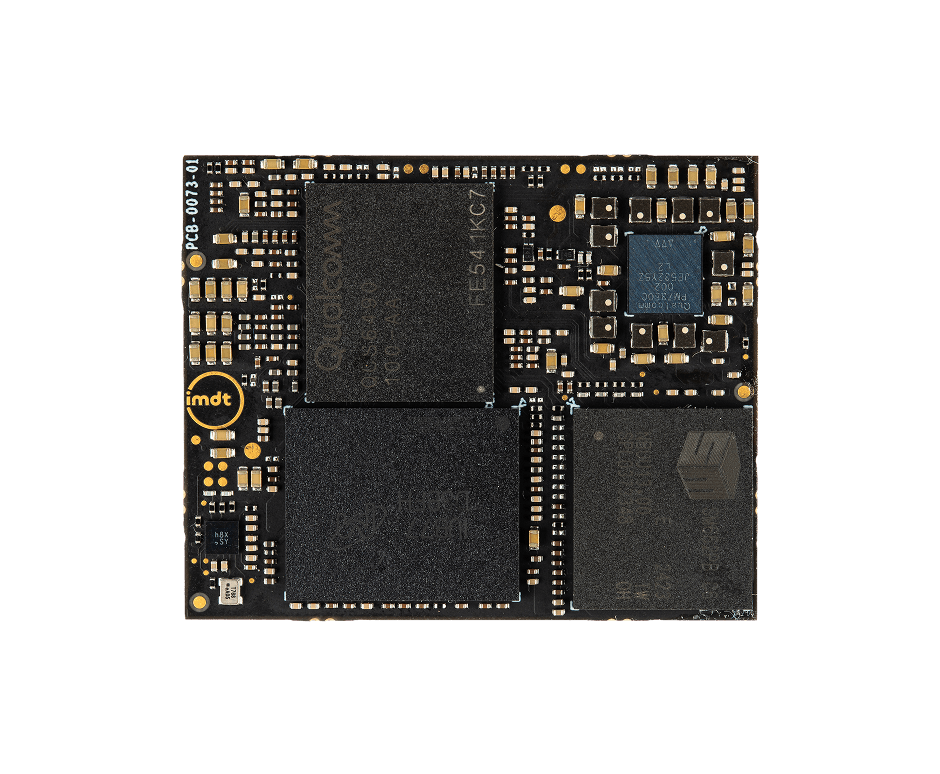

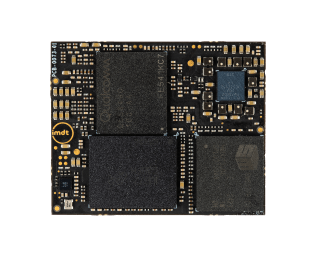

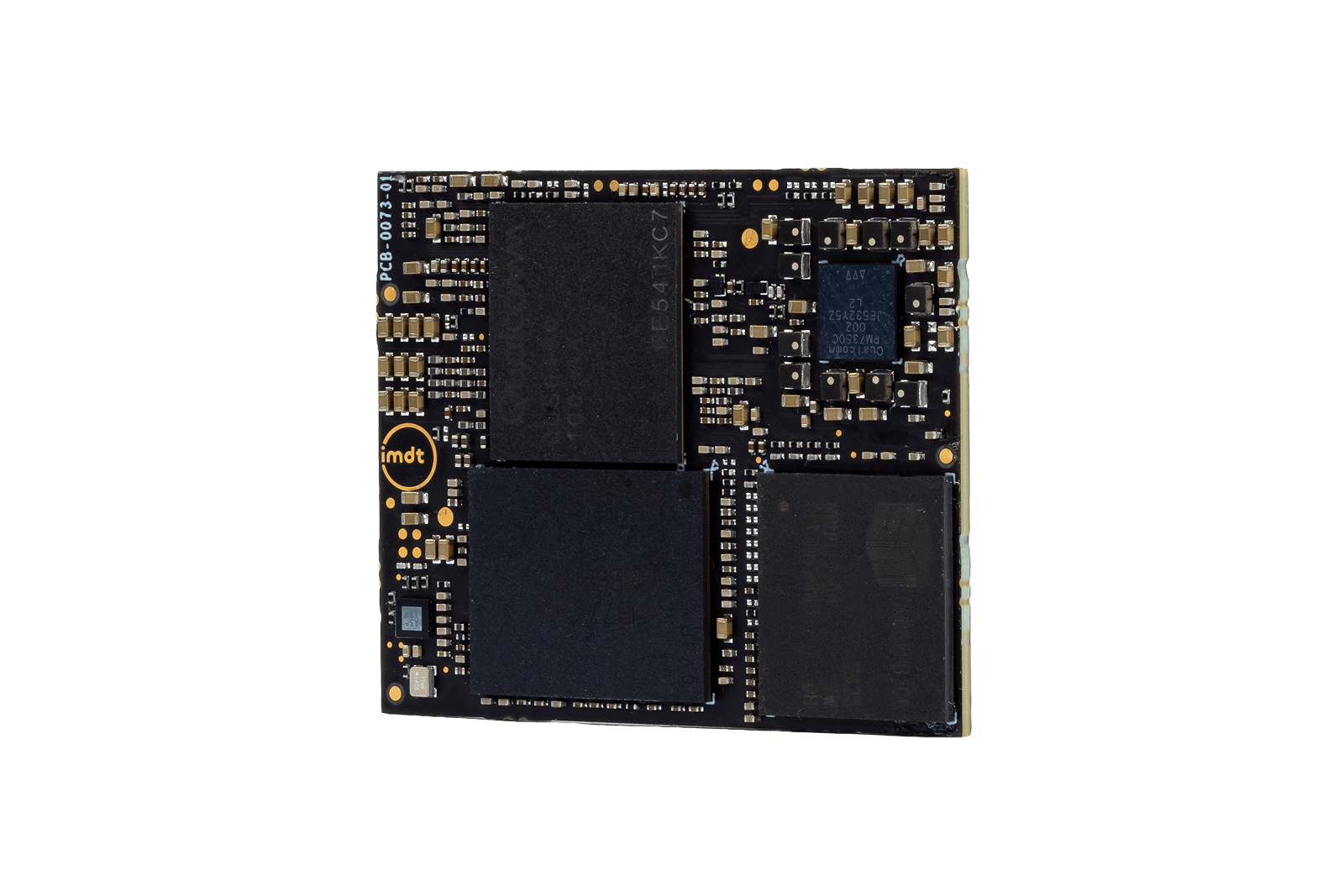

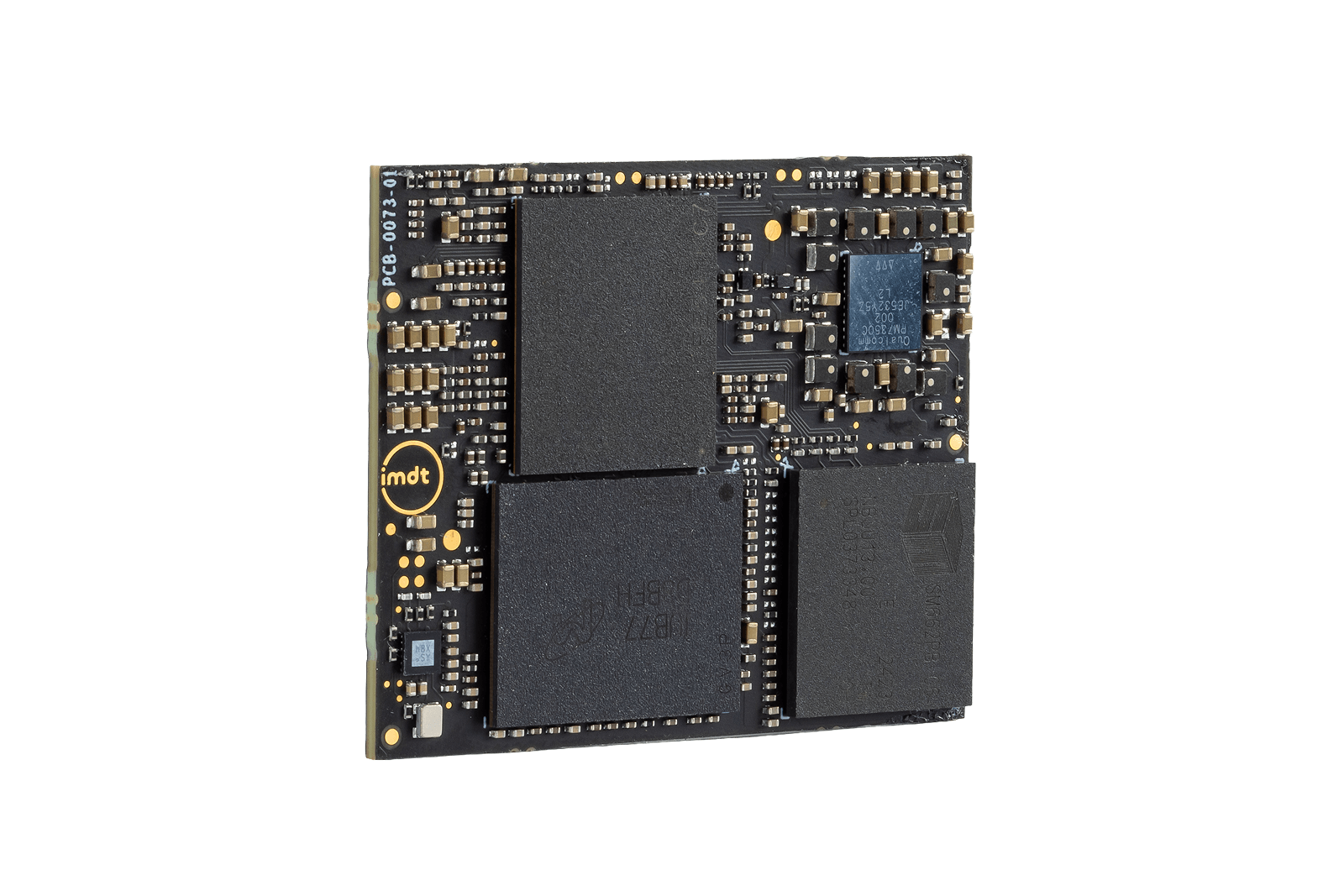

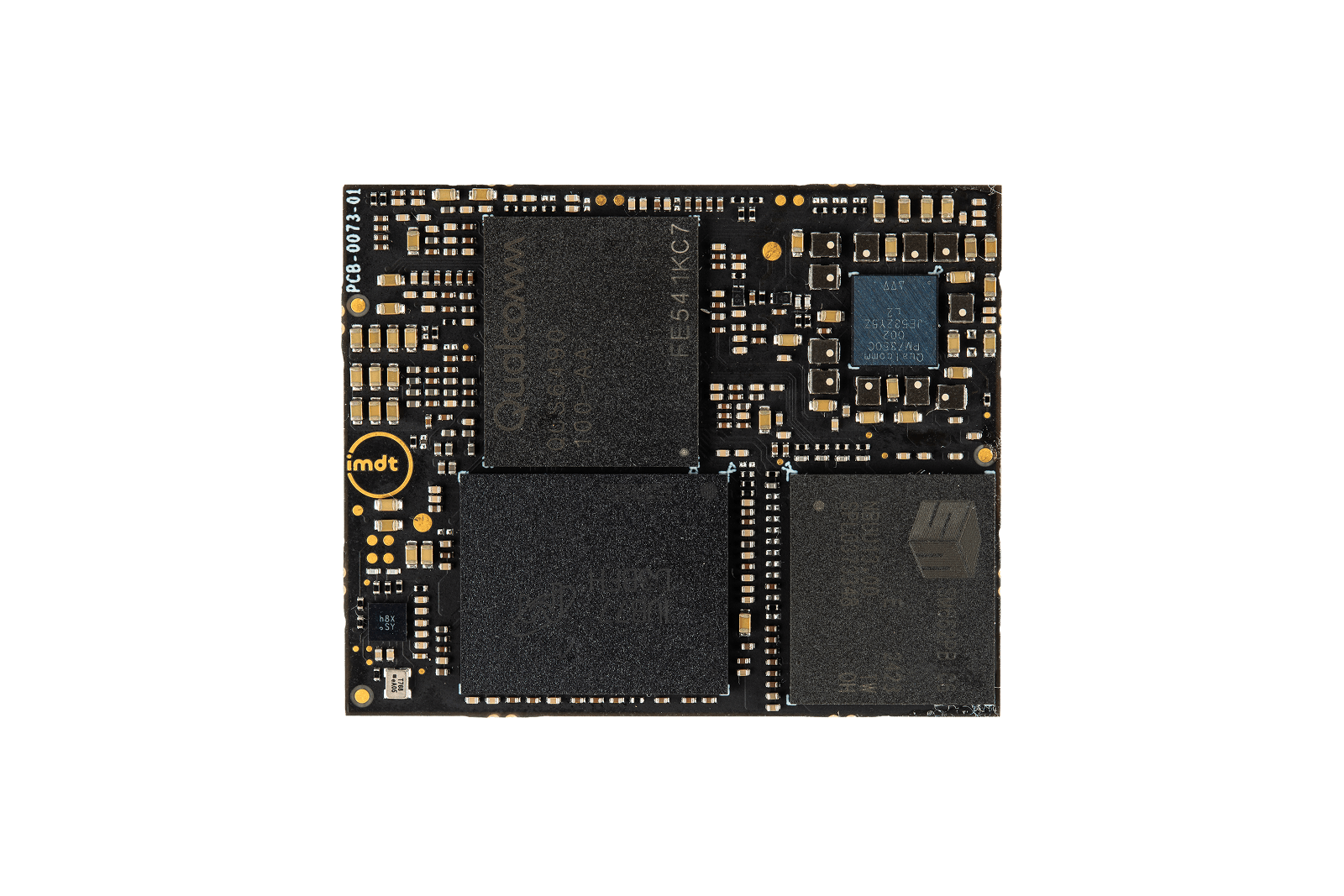

QCS6490/5430 SOM
The IMDT QCS6490/5430 SOM, powered by the Qualcomm® QCS6490/5430 processor, is a production-ready module designed for cost-efficient edge AI systems that demand dependable performance and versatility. Ideal for smart retail, industrial automation, smart-city sensing, and AI-driven kiosks, the IMDT QCS6490/5430 SOM combines 8 GB LPDDR5 memory, UFS 3.1 or eMMC storage, and a flexible range of connectivity interfaces. With five 4-lane MIPI-CSI camera inputs supported by the Qualcomm Spectra ISP, it enables advanced vision and analytics workloads in compact, power-sensitive designs. IMDT’s modular architecture and long-term availability allow customers to tailor the SOM to their needs while keeping development cost and complexity low.
Core benefits
Small form factor
Complete solution including HW&SW
Pin-to-Pin compatible with QCS8550
Advanced Security
Buy now
No items found.
Qualcomm Kryo central processing unit (CPU), X1.5 compute power
Qualcomm Adreno 740 GPU
Multiple display interface
8th-generation Qualcomm AI Engine, X10 performance
Qualcomm Spectra 18-bit triple cognitive image signal processor (ISP)
Multiple camera pipelines for high-end imaging
Enterprise-grade security capability - Trust Management Engine and Qualcomm Type-1 Hypervisor

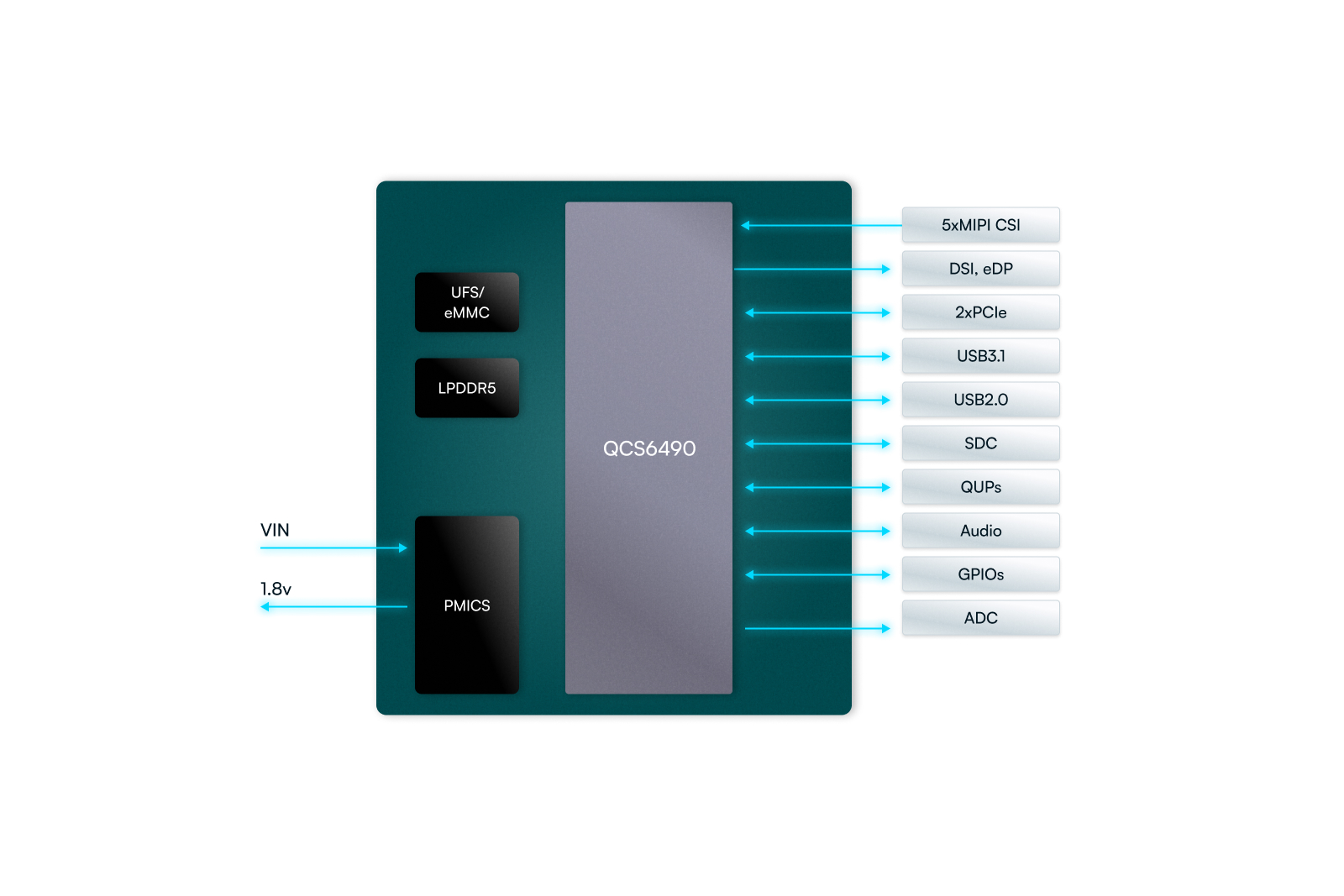

Specification
Description
- CPU | QCS6490/5430-1^^
- Memories | LPDDR5, 8GByte^^Storage: UFS 3.1 2-lane HS gear 4 or eMMC 5.1
- Connectivity | 1x USB 3.1^^1x USB 2.0^^1x PCIe Gen3 1-Lane^^1x PCIe Gen3 2-Lane^^1x SDC (4 bits)\
- Camera | 5x 4-lane MIPI CSI interface for cameras^^ISP – Qualcomm spectra
- Display | 1xDSI 4-Lane^^1x eDP 1.4
- Audio | I2S, DMIC, SoundWire
- Control I/Fs | QUPs (SPI,I2C,UART)^^GPIOs^^ADCs
- Power | Single power input^^Integrated PMICs^^1.8v,1.2v outputs

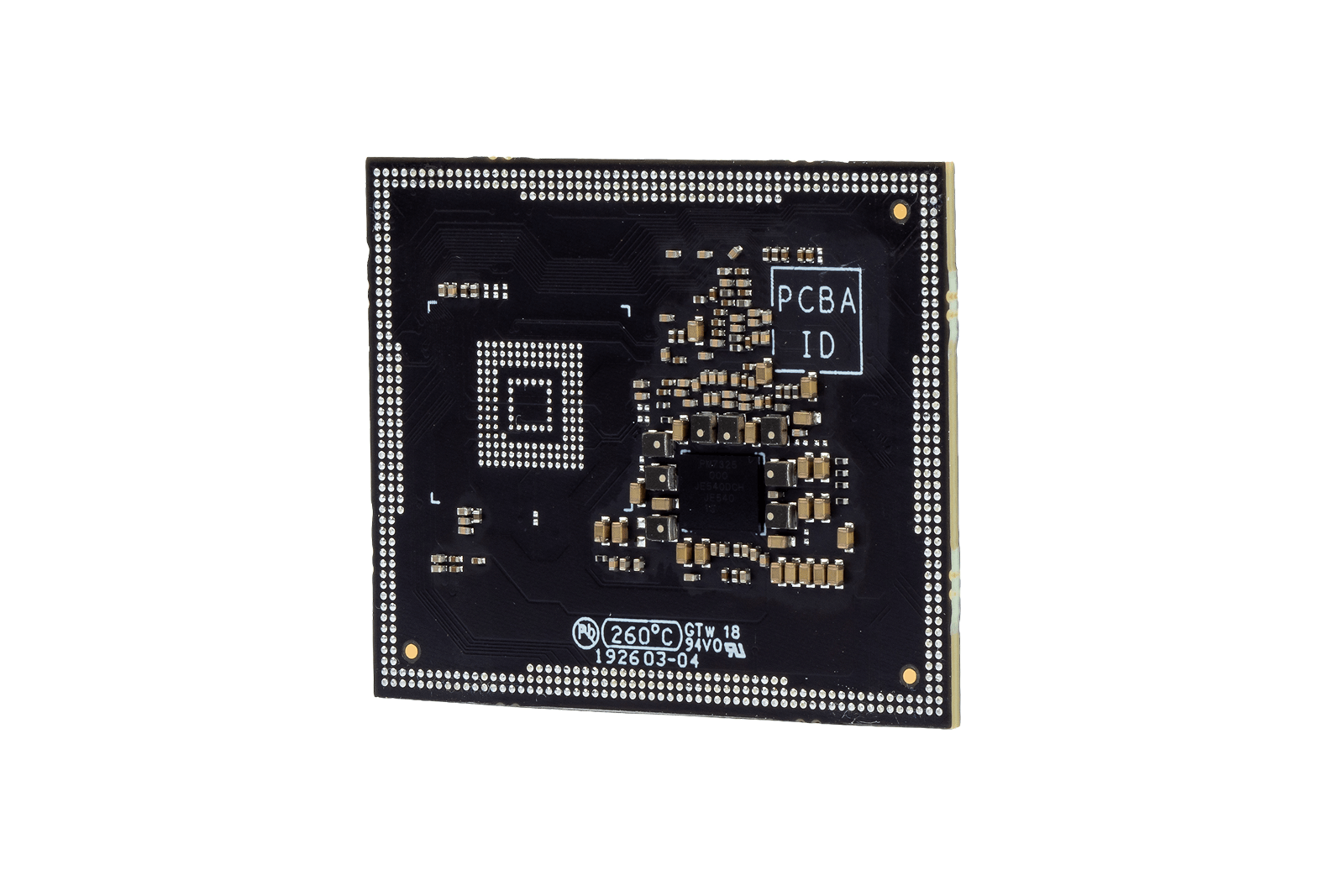

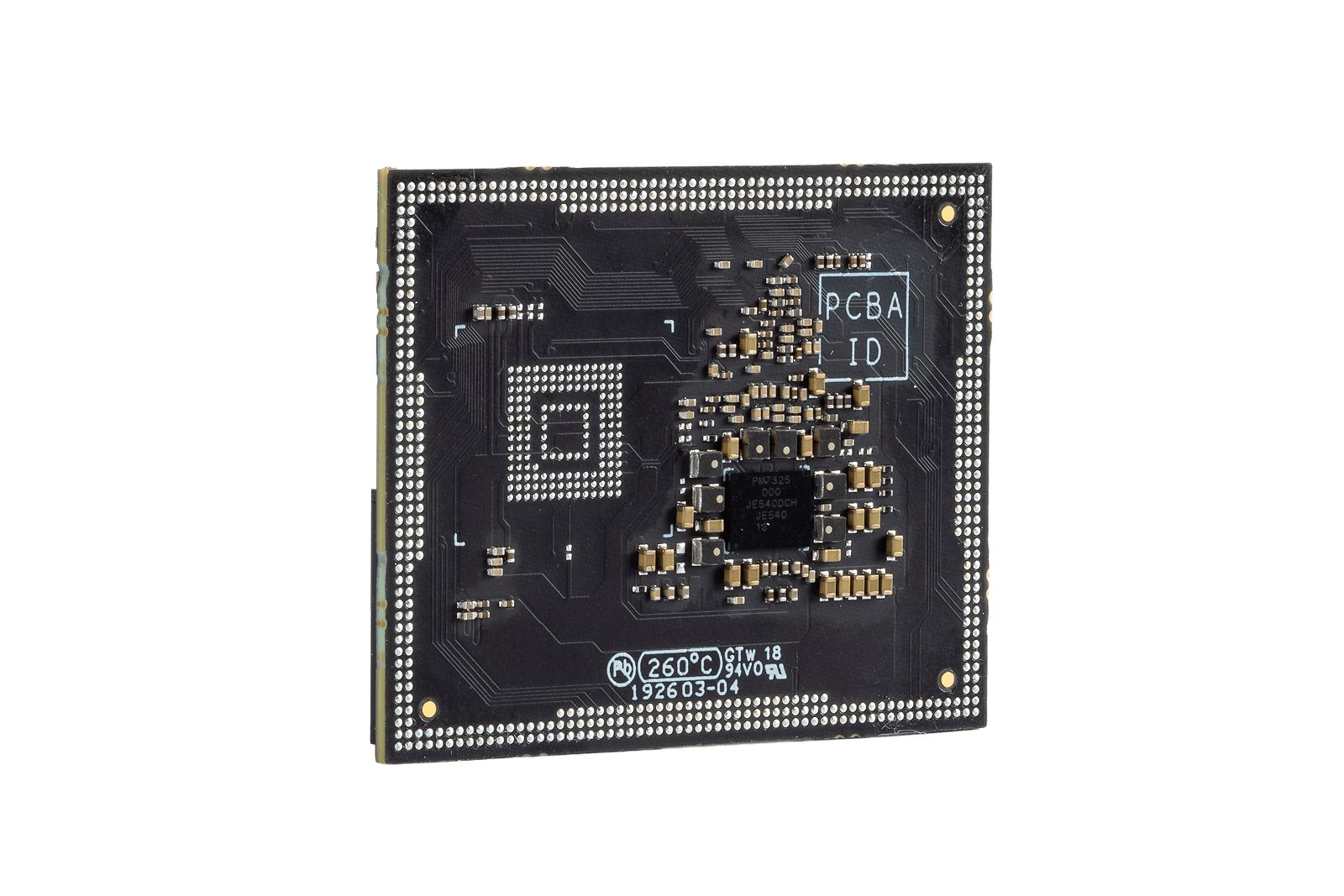

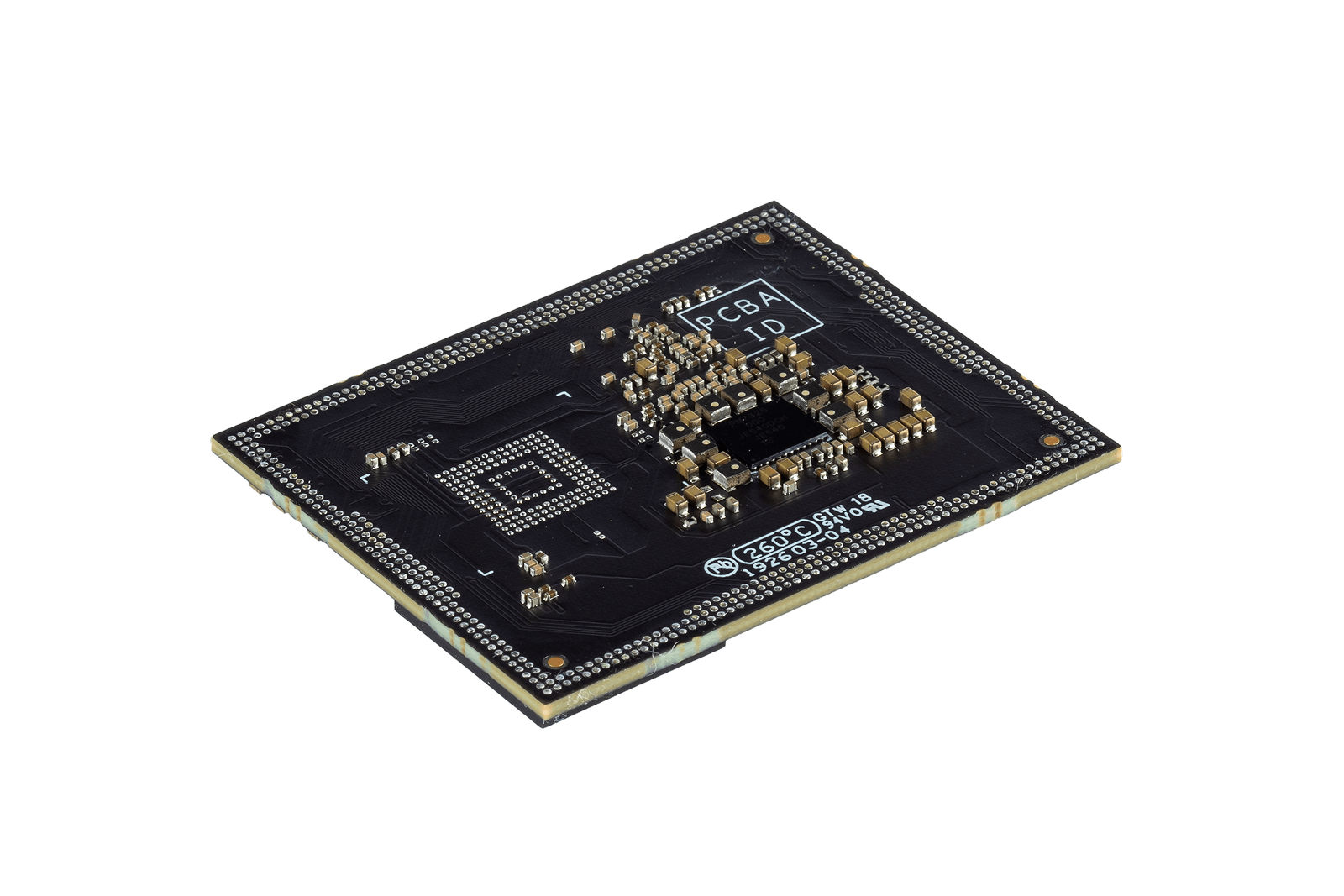

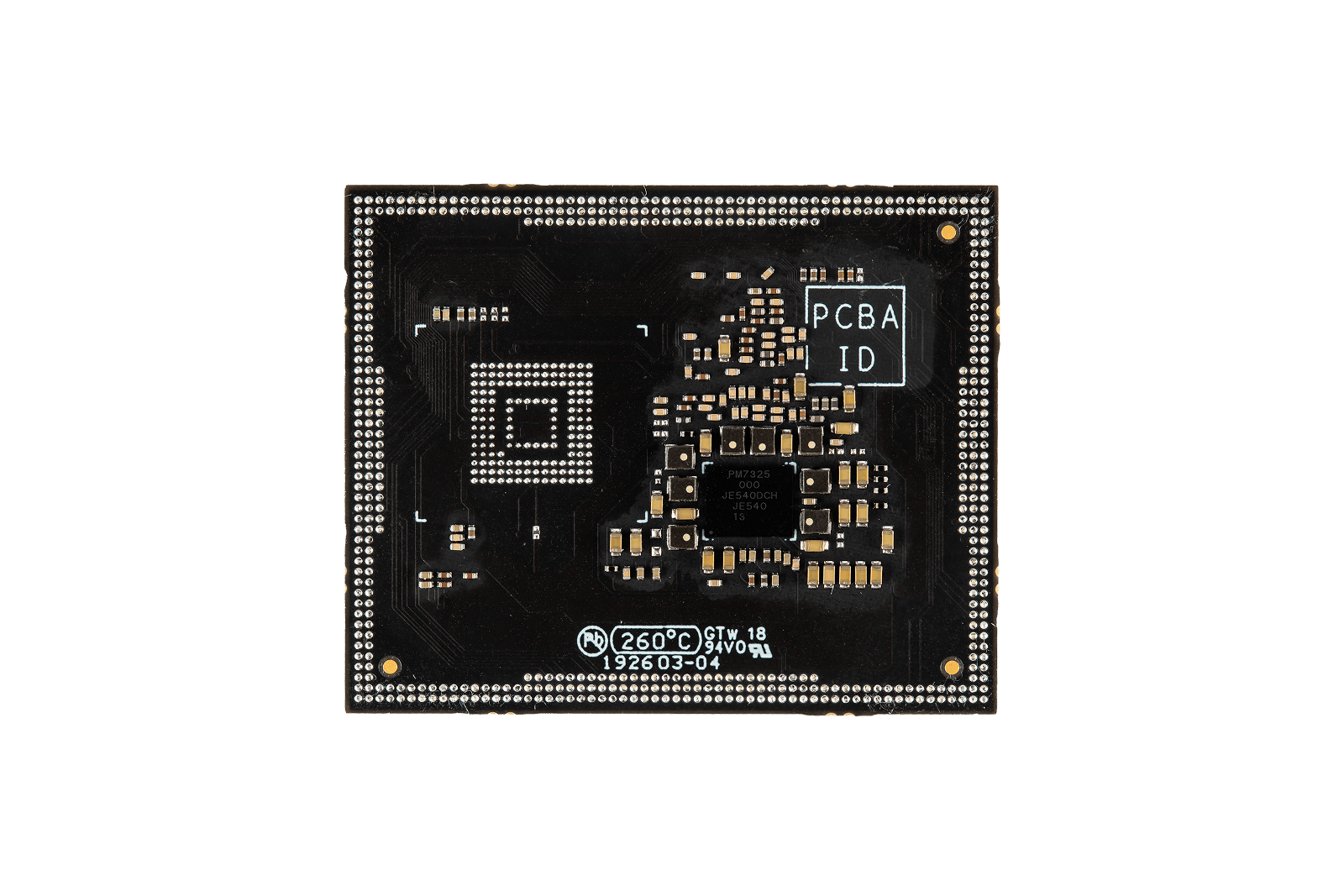

- Mounting | 504-pin BGA, 0.6mm pitch, for SMT assembly
- Dimensions | 37mmx30mmx4mm
