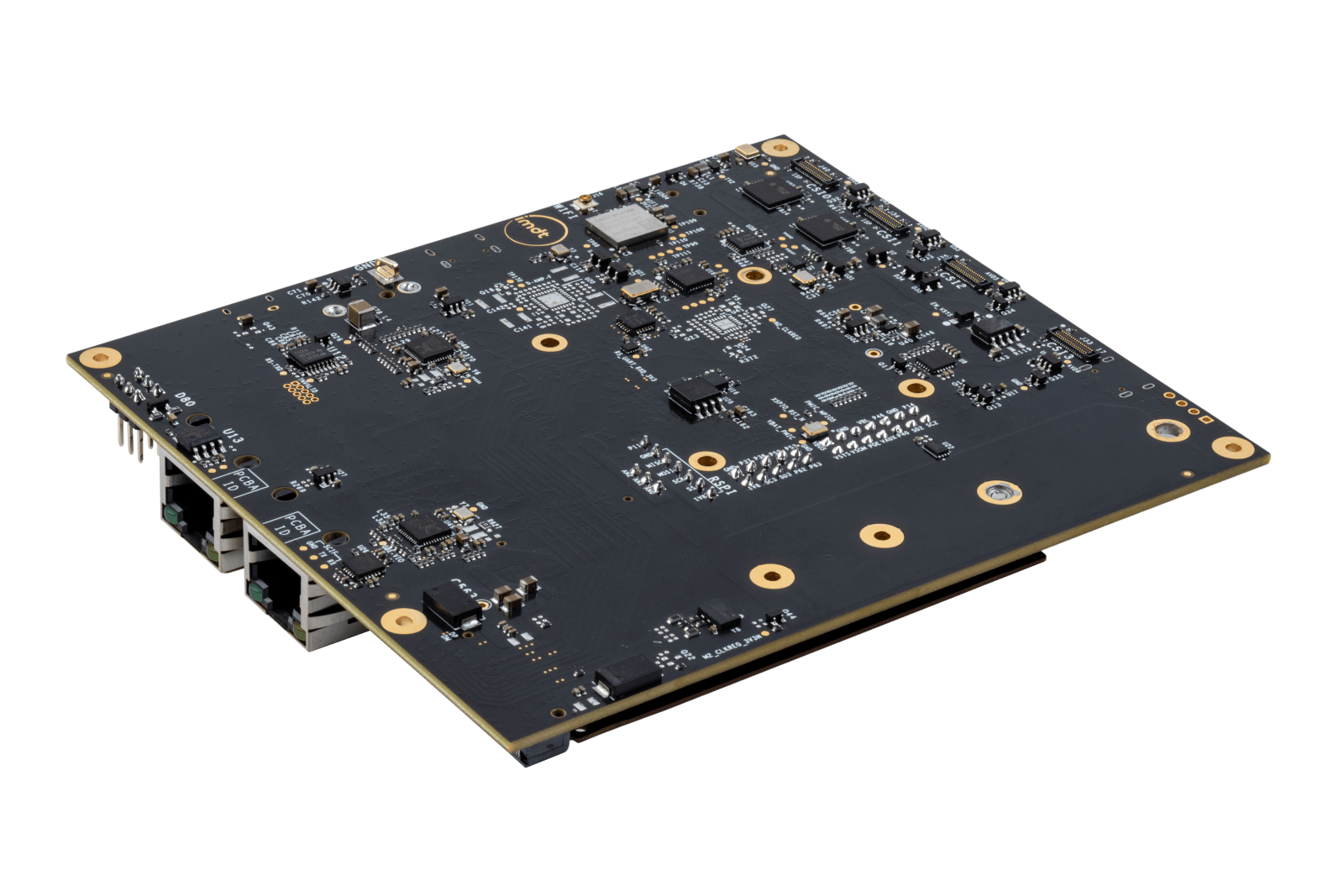

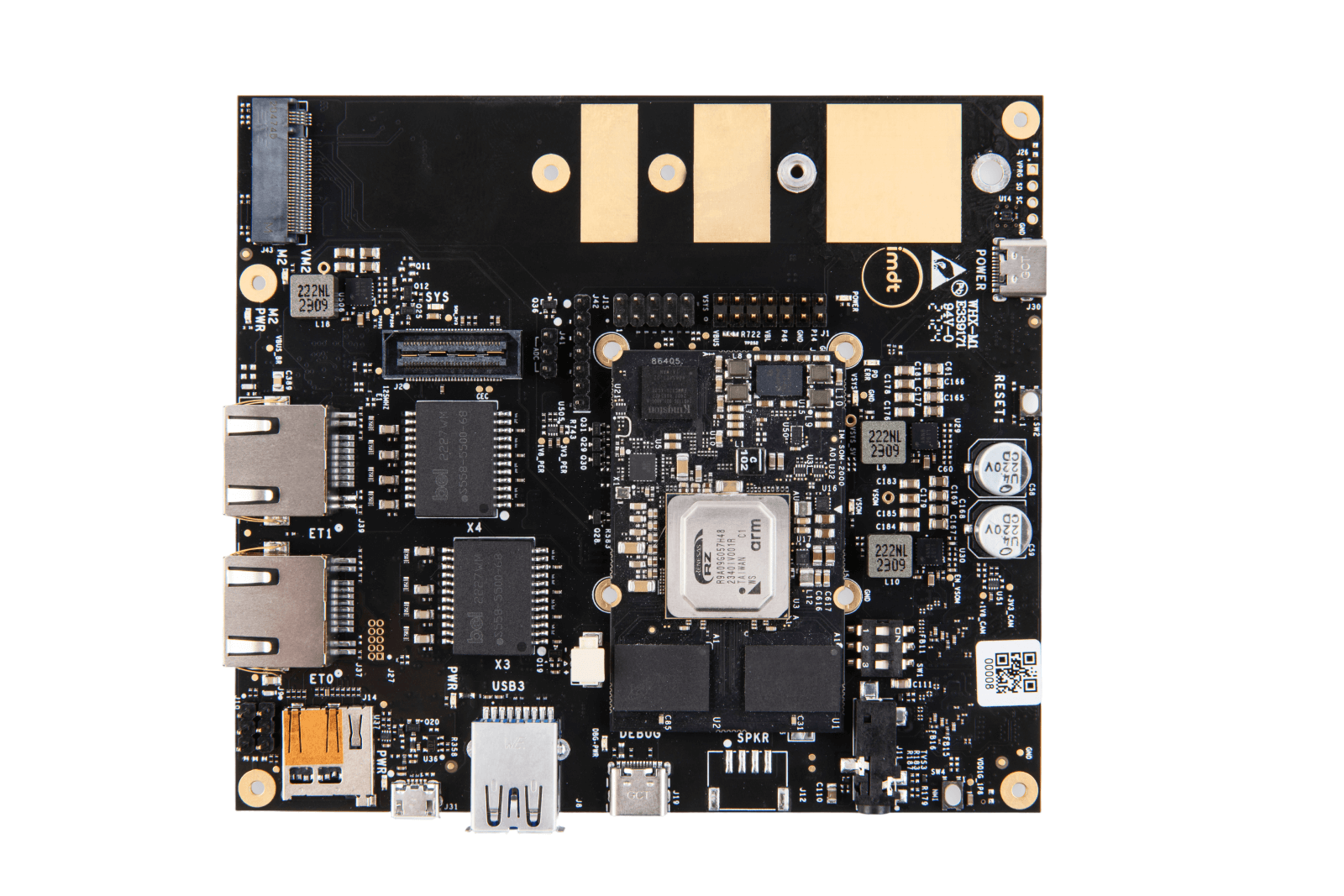

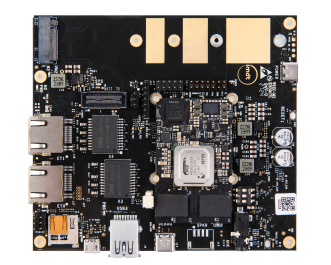

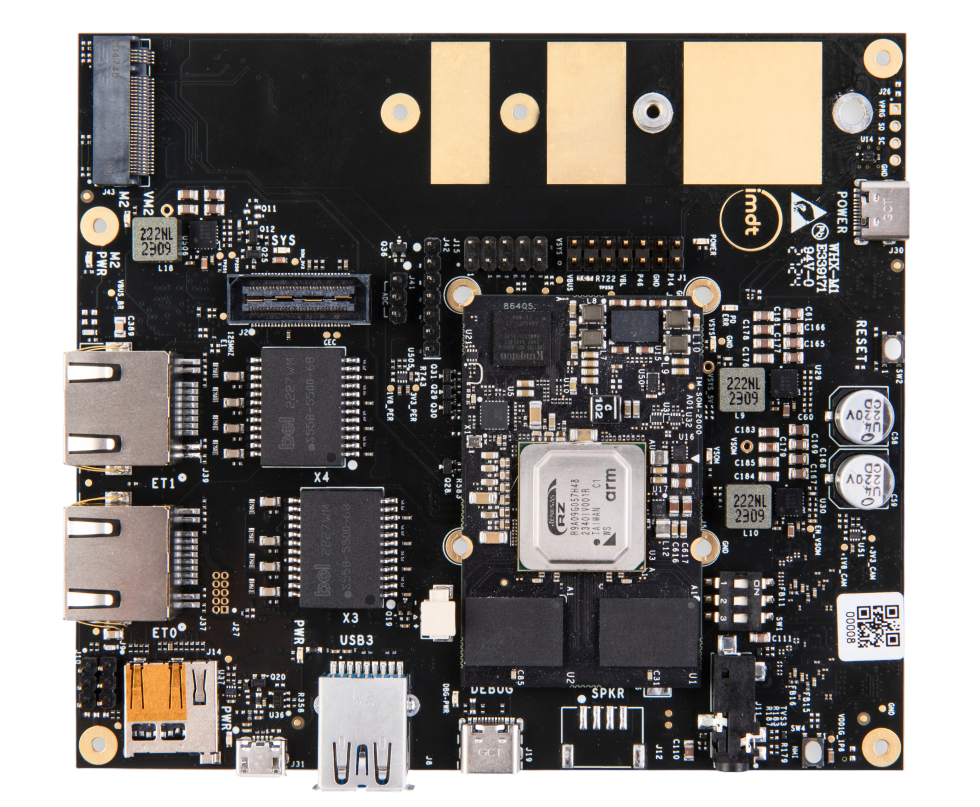

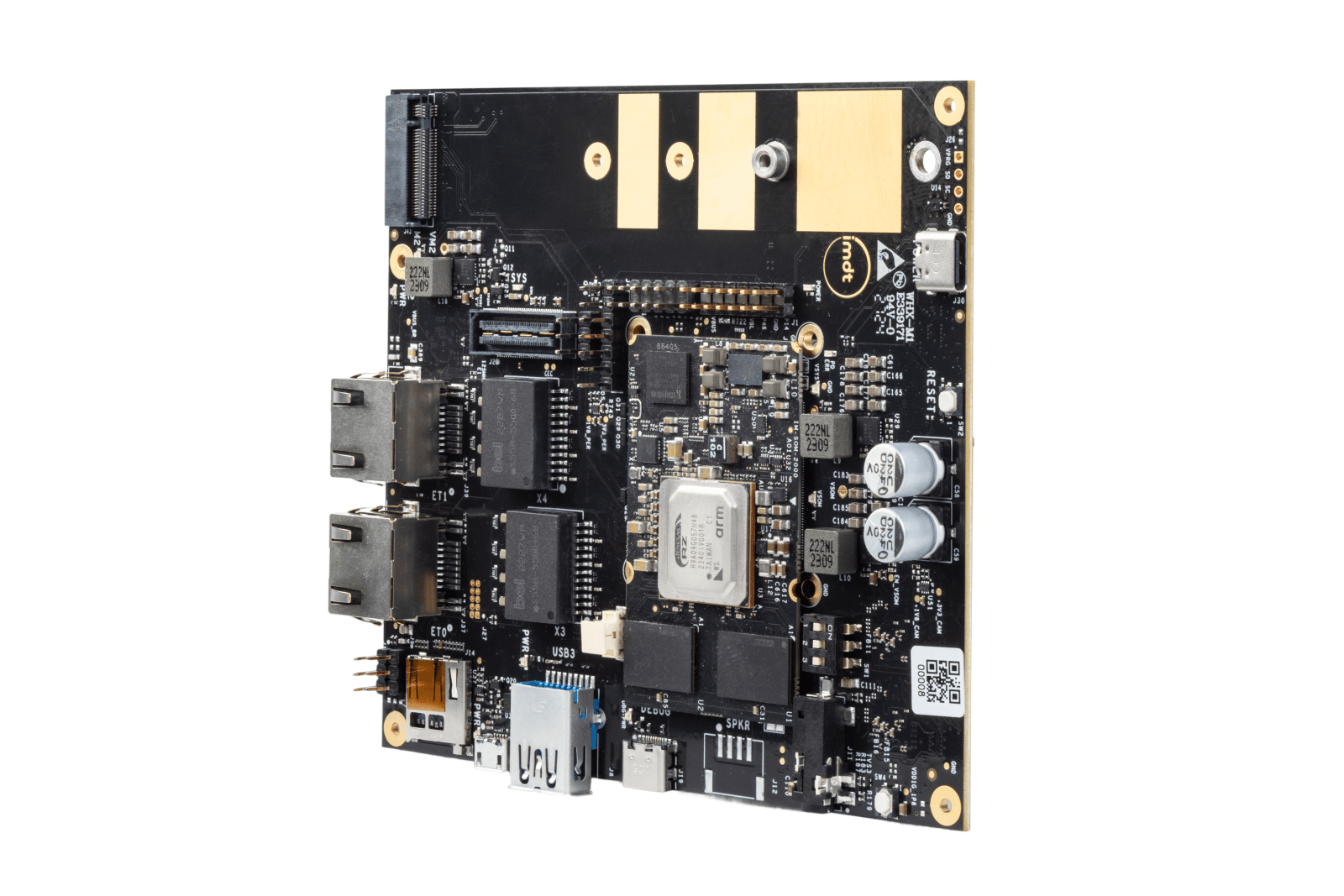

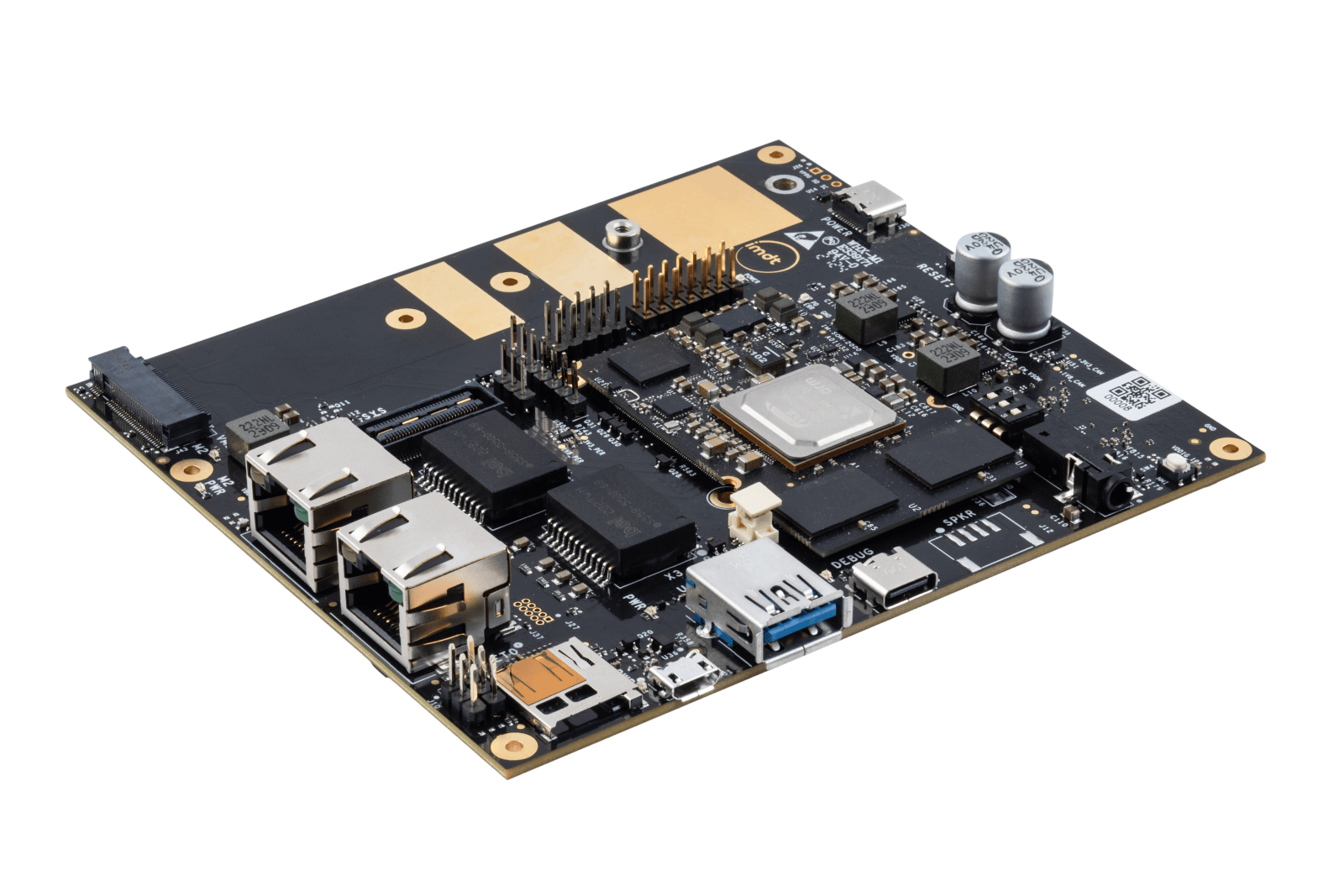

V2H 4X SBC

The IMDT V2H 4X SBC is a compact, high-performance carrier board built around the IMDT V2H SOM, designed for real-time edge AI and vision-centric applications. A standout feature is its support for 4-lane PCIe Gen3, making it an ideal host platform for external AI accelerators. This high-bandwidth interface enables seamless connectivity to FPGAs, NPUs, or storage devices, allowing developers to offload compute-intensive workloads, enhance real-time performance, and reduce latency in vision processing pipelines. The board also supports multi-camera systems through four independent MIPI CSI interfaces, making it suitable for robotics, industrial automation, and autonomous devices. With rich I/O, efficient power design, and a developer-friendly layout, the V2H 4X SBC accelerates prototyping and deployment of advanced embedded solutions.

Download brochure

Documentation

Buy now

Low Power SBC without heat sink

Built in AI accelerator

Various communication / storage / network interfaces

Accelerators engines

On-chip SRAM

Audio

Analog/digital converter(ADC)

Internal temperature sensors

Security

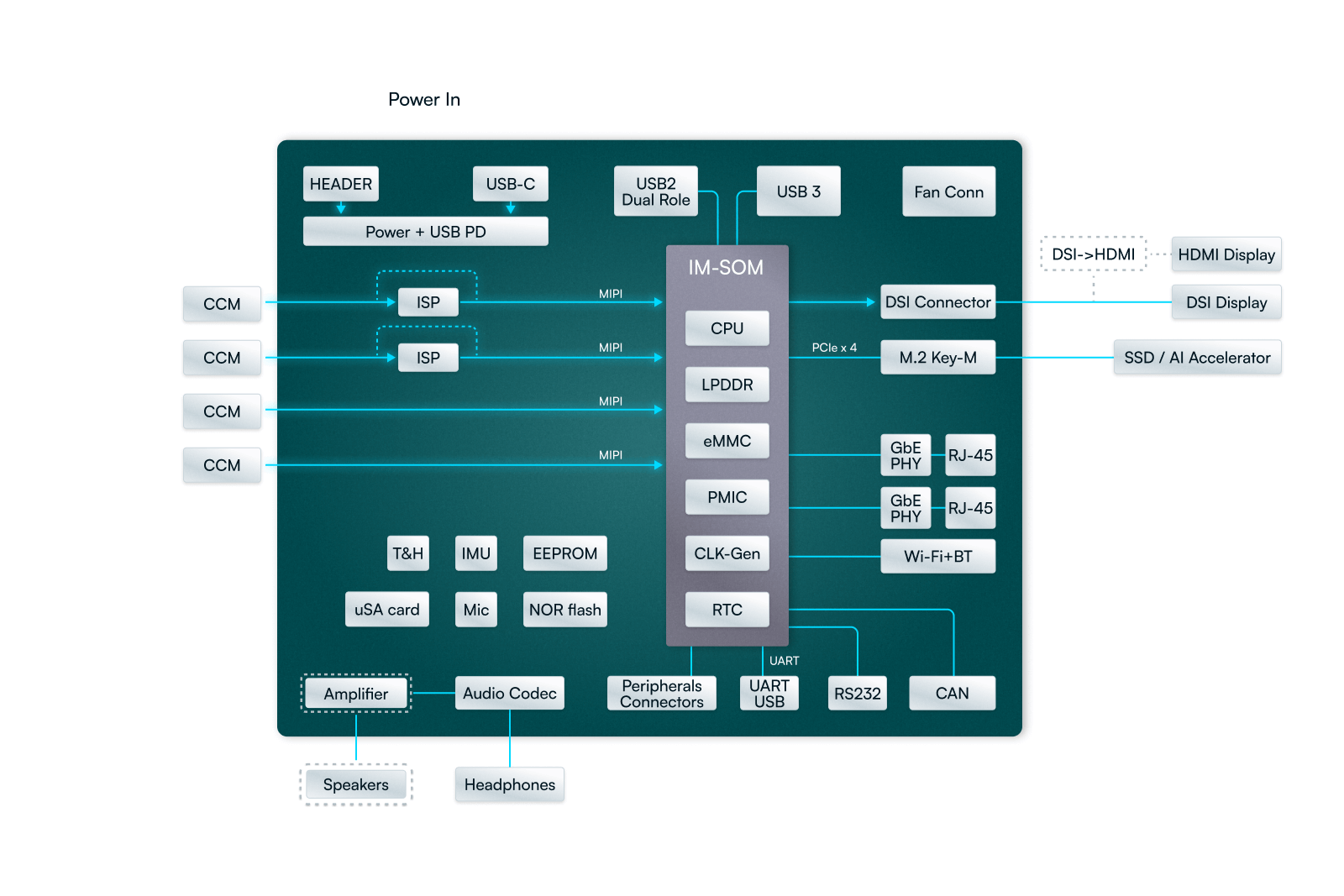

Specification

Description

CPU | RZ/V2H, 4xA55+M33+2xR8, VPU, NPU, GPU, ISP^^
Memories | QSPI NOR flash, 64MBytes^^Secure EEPROM^^Micro SD card slot^^

Connectivity | Supports 4-lane PCIe Gen3^^2.4/5GHz Wi-Fi 4, Dual-band +
Bluetooth 5.2 BR/EDR/LE^^22 x RJ-45, 1000Base-T, Optional PoE^^USB 3.2 type-A connector^^USB 2.0 Micro-B connector^^M.2 NGFF Key-M for AI accelerator^^RS-232 transceiver on board^^CAN-FD transceiver on board^^

Camera | 4 x 4-lane MIPI CSI interface for cameras via IAS connectors^^ISP^^

Audio | 3.5mm Audio jack for stereo headset with mic^^Onboard PDM digital microphone^^

Sensors | Temperature & Humidity^^6-DOF IMU^^3-Axis magnetometer

Power | USB-C PD power^^POE+GTP (with addition of power supply module)^^Optional external power supply^^

Misc | RTC^^Fan control^^Boot DIP-Switch^^LEDs^^Debug - On board UART to USB bridge with USB-C connector^^
Extensions | SPI, I2C, I2S, PDM, GPIOs, Analog headers^^Extension connectors with power and I2C

Dimensions | 125 x 110 x 15mm^^

‍

The IMDT V2H 4X Evaluation Kit Provides a ready-to-use development environment for streamlined prototyping and system integration. Built around the V2H 4X SBC, the kit exposes all key interfaces and connectivity features, making it easy to evaluate performance and explore real-world AI use cases. It enables developers to accelerate testing, fine-tune applications, and validate designs with minimal setup effort. It is an ideal platform for transitioning quickly from concept to deployment.
